HLAK 35
- Main line branch terminal type C
- 1-pole
- Connection of 2 x 25 mm² and 2 x 35 mm²
- Lead-free version on request
The HLAK 35 is available in single pole, double block single pole, 3-pole, 4-pole and 5-pole versions. Thanks to the special triple coating of the brass body, the HLAK 35 is approved for aluminium and copper conductors. The double block has a maximum nominal current of up to 428 Amps.
#080210
Product details
max. 1000 V AC/DC
max. 125 A Al
max. 125 A Cu
202 A Cu (incoming 2x 25 mm²)
IEC 60947-7-1
IEC 61238-1 (Class A)
DIN VDE 0603-3-1
UL-1059 / CSA C22.2 No.158-10
2x 35 – 4 mm² (2 – 12 AWG)
2x 25 – 2,5 mm² (4 – 14 AWG)
2x 25 – 2,5 mm² (4 – 14 AWG)
2x 16 – 1,5 mm² (6 – 16 AWG)

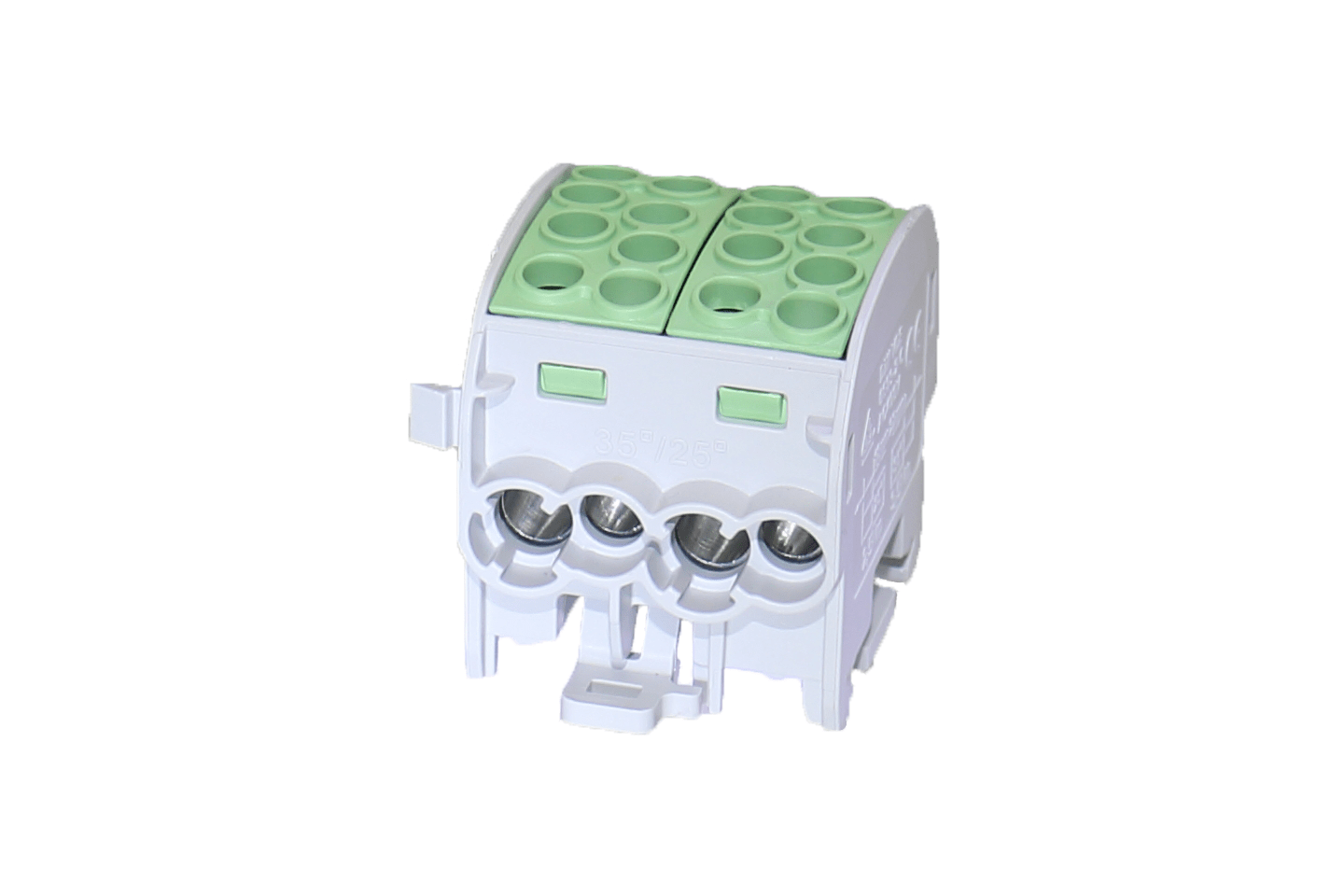

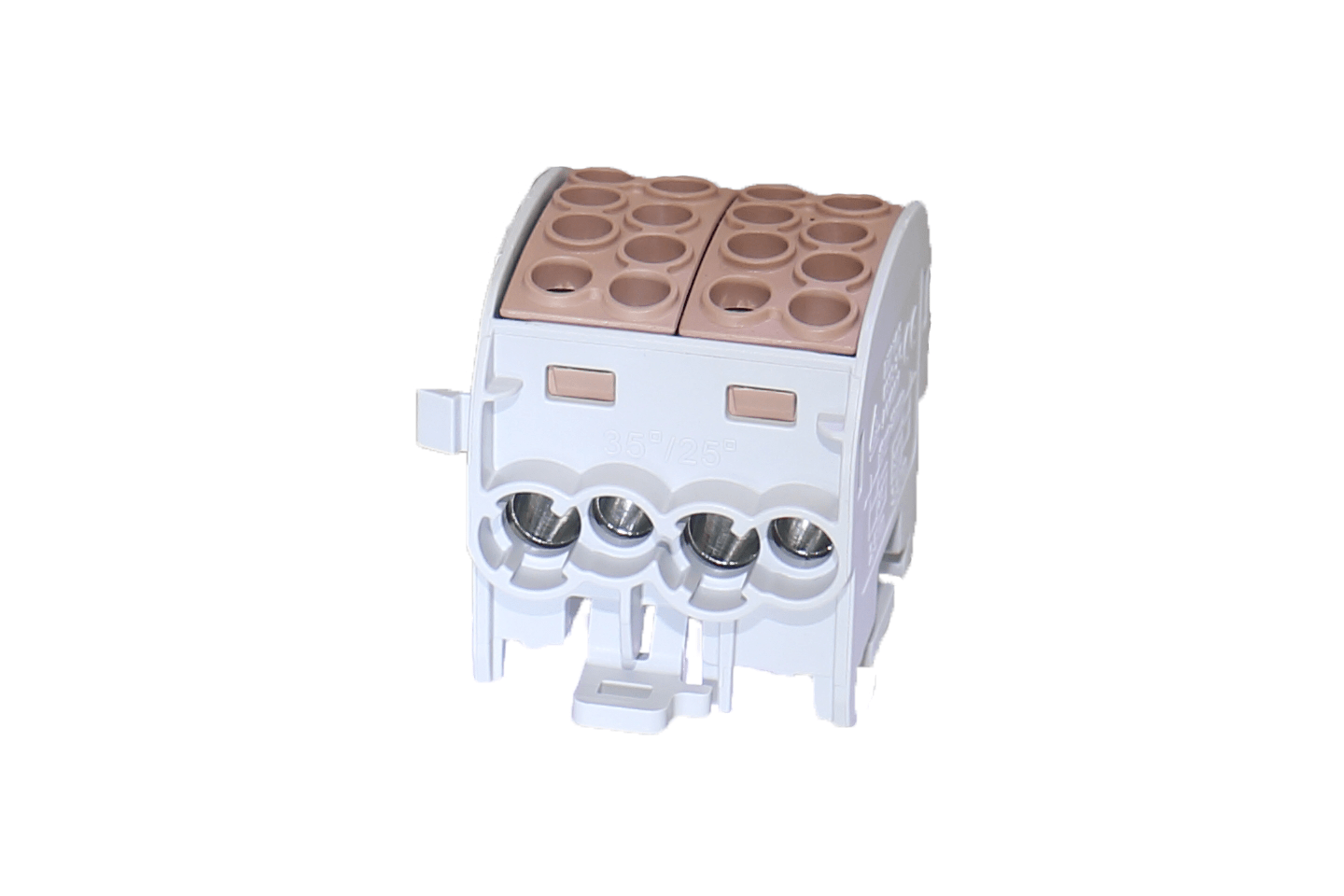

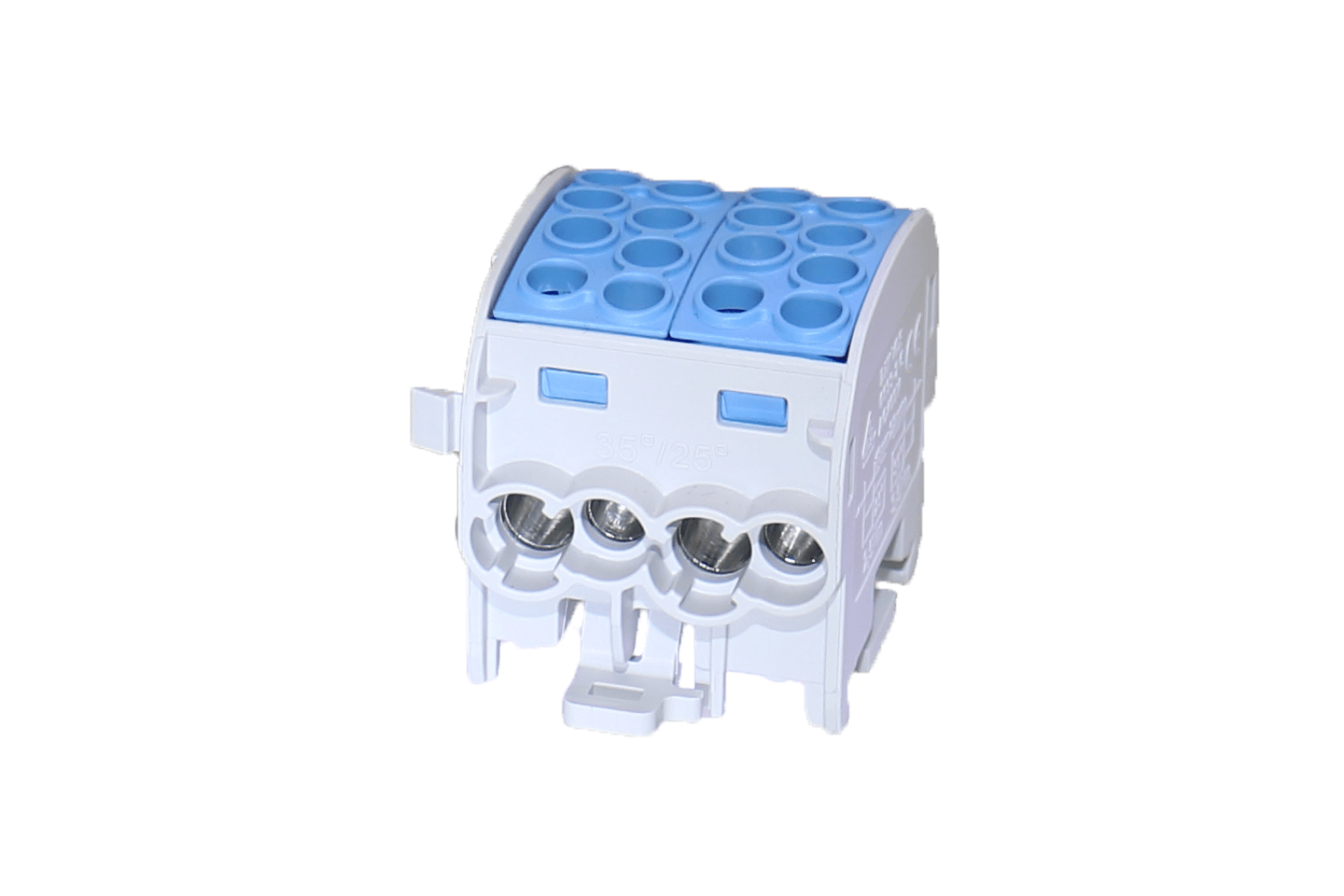

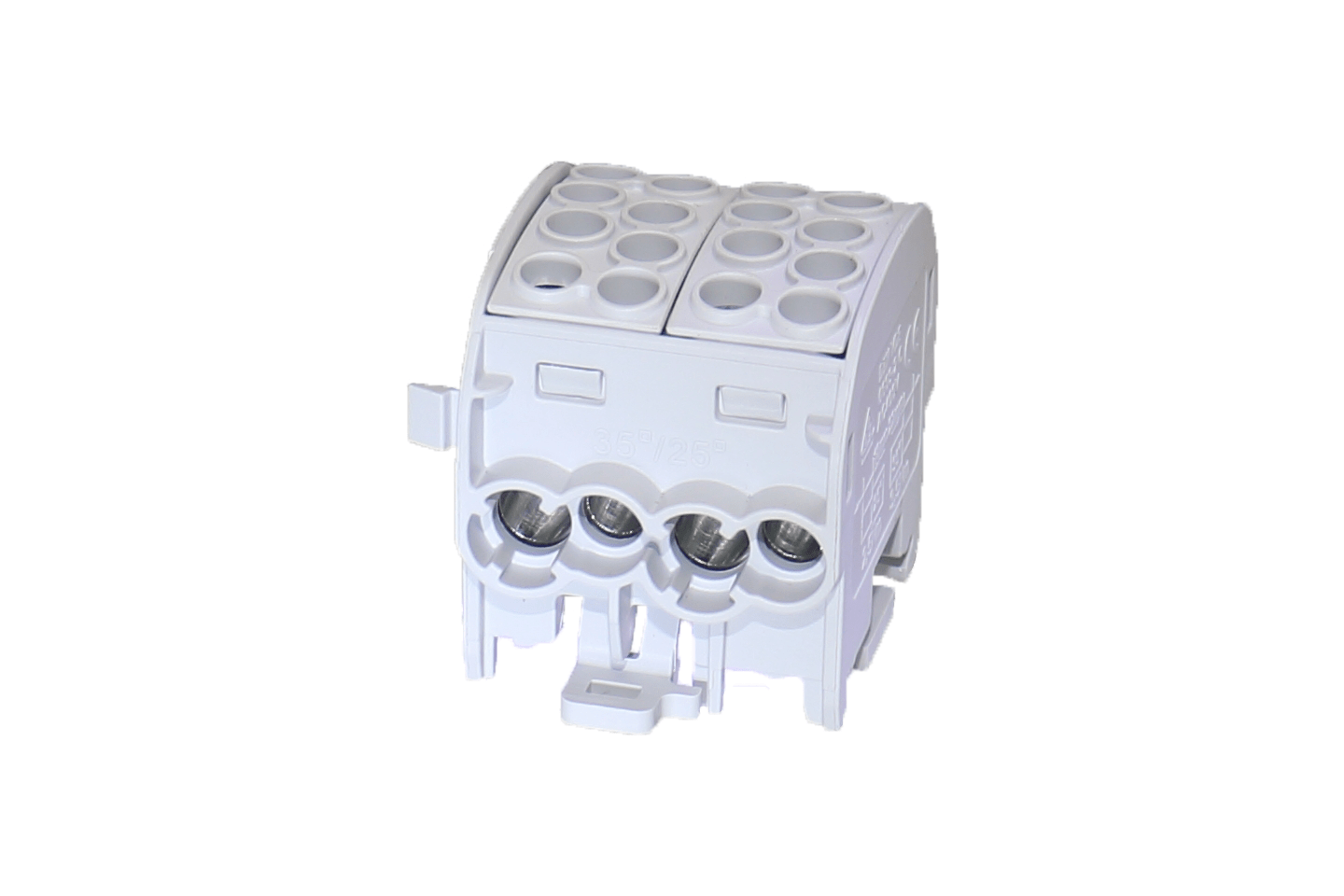

HLAK 35D Type C 1-pole #080220

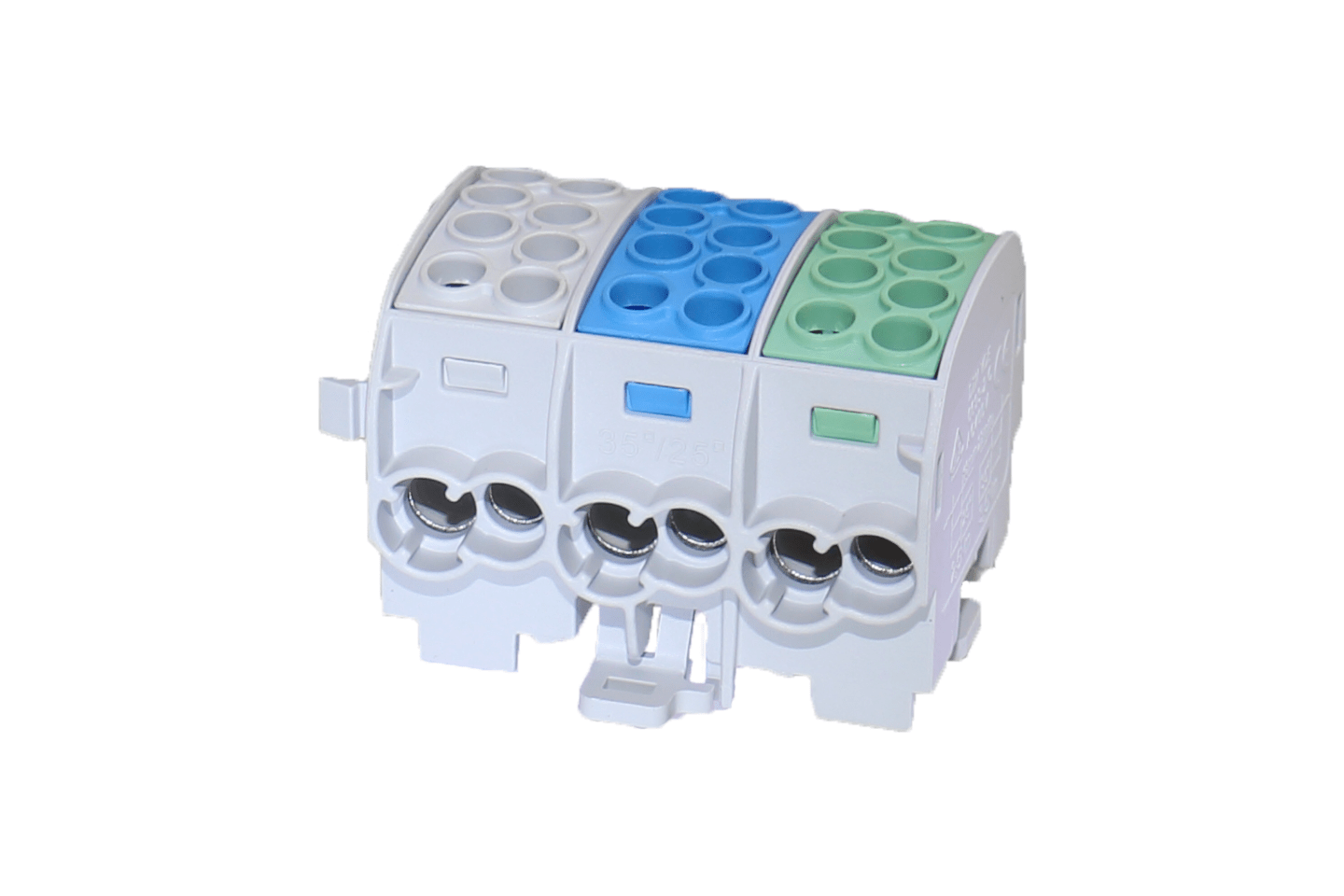

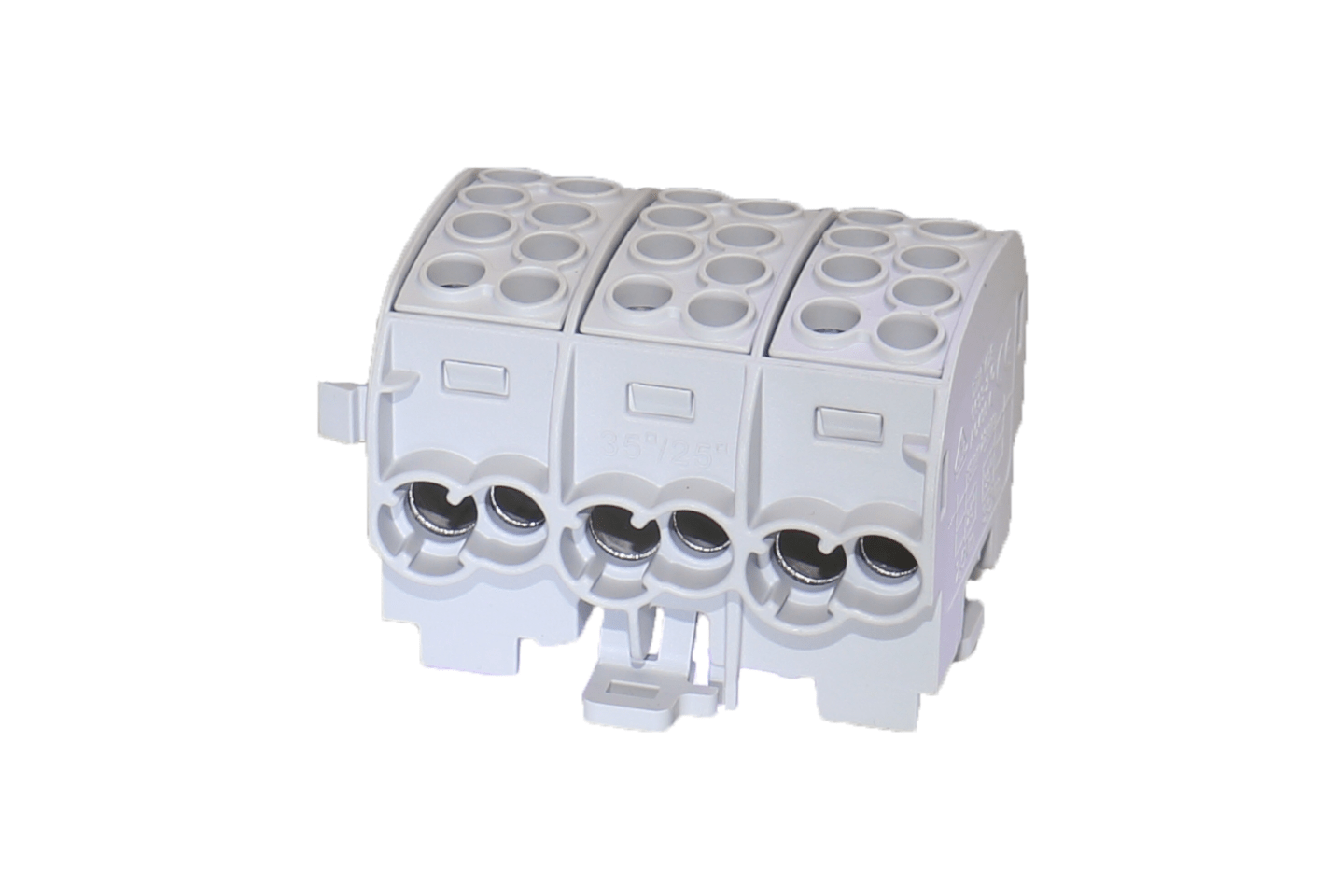

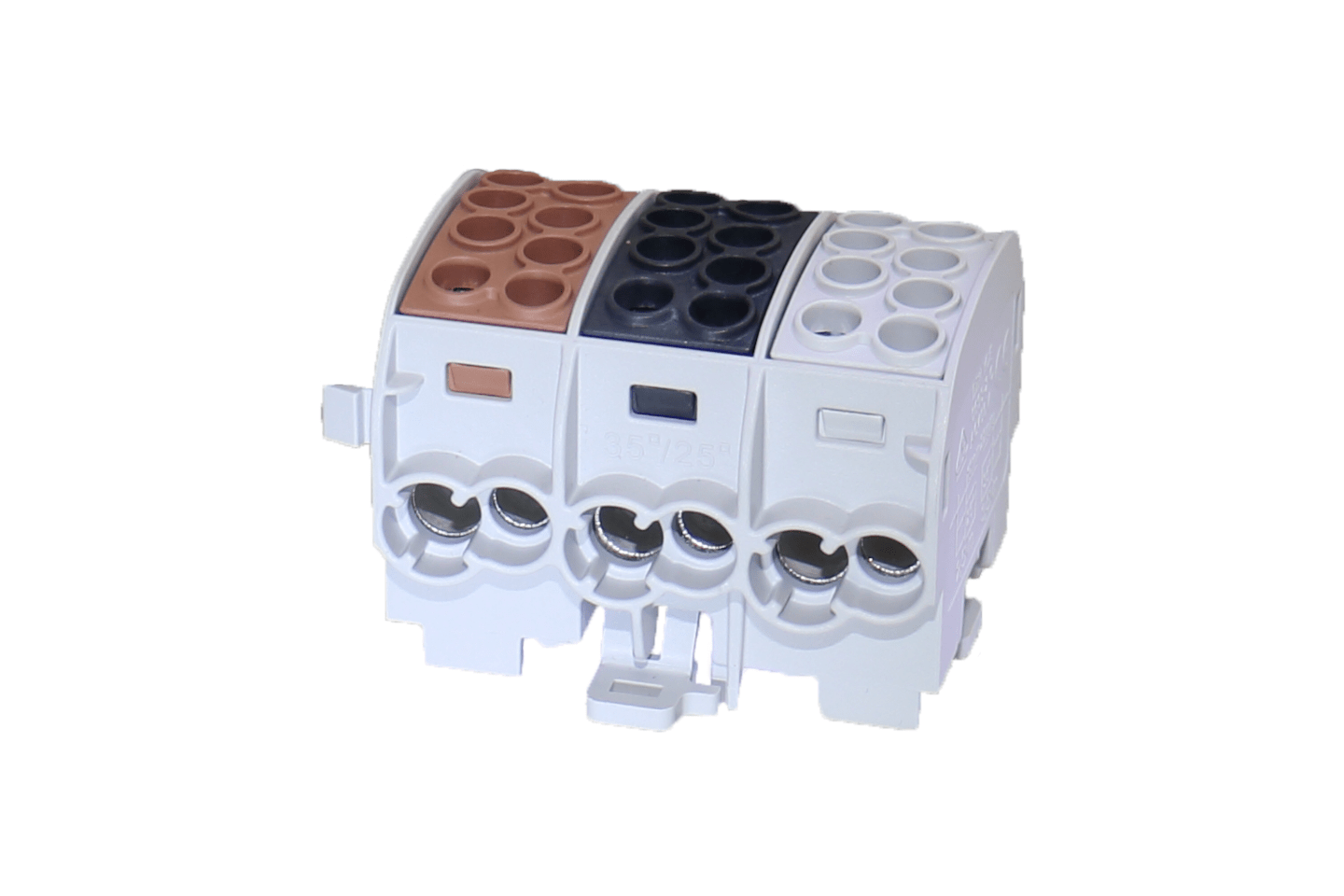

HLAK 35 Type C 3-pole #080230

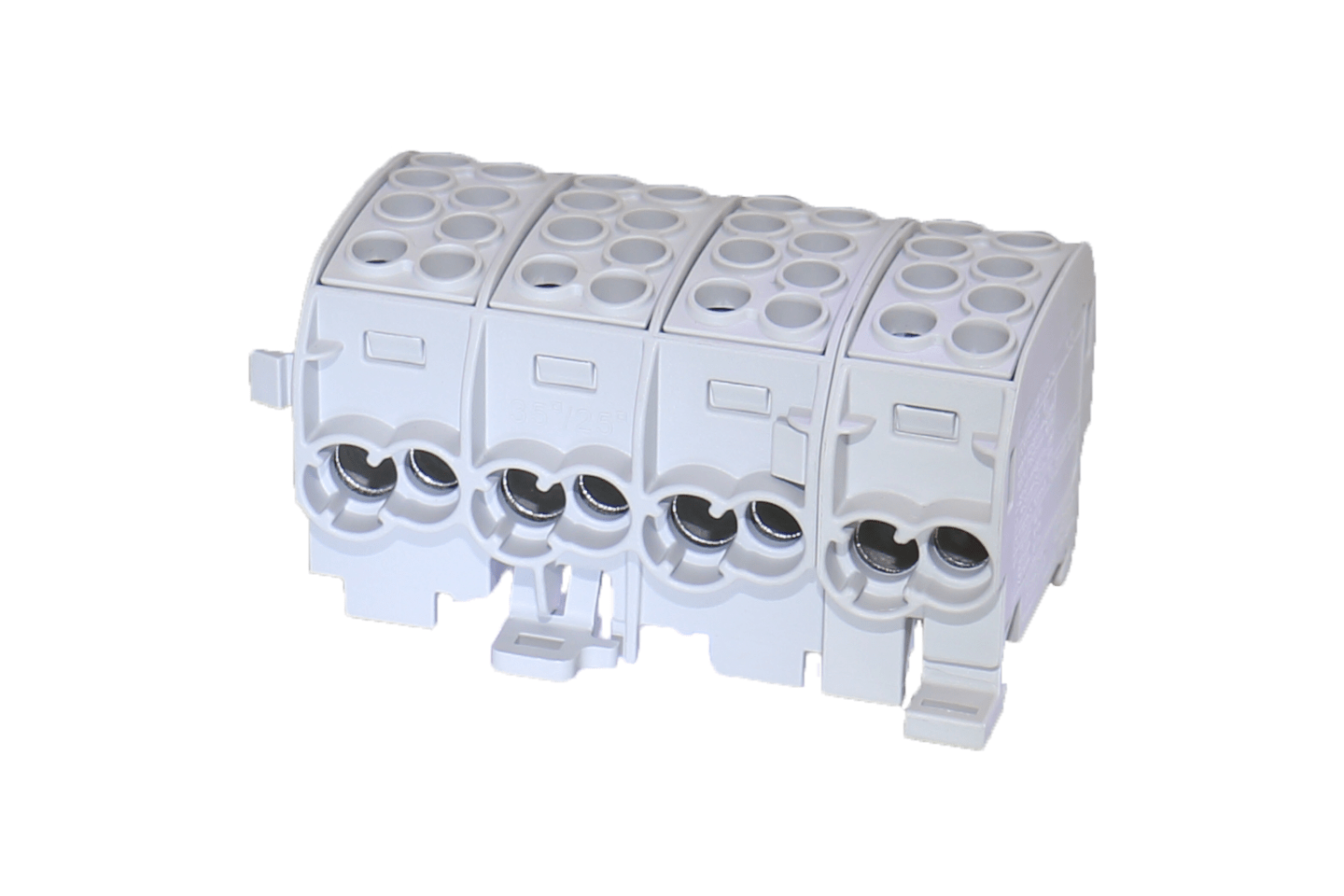

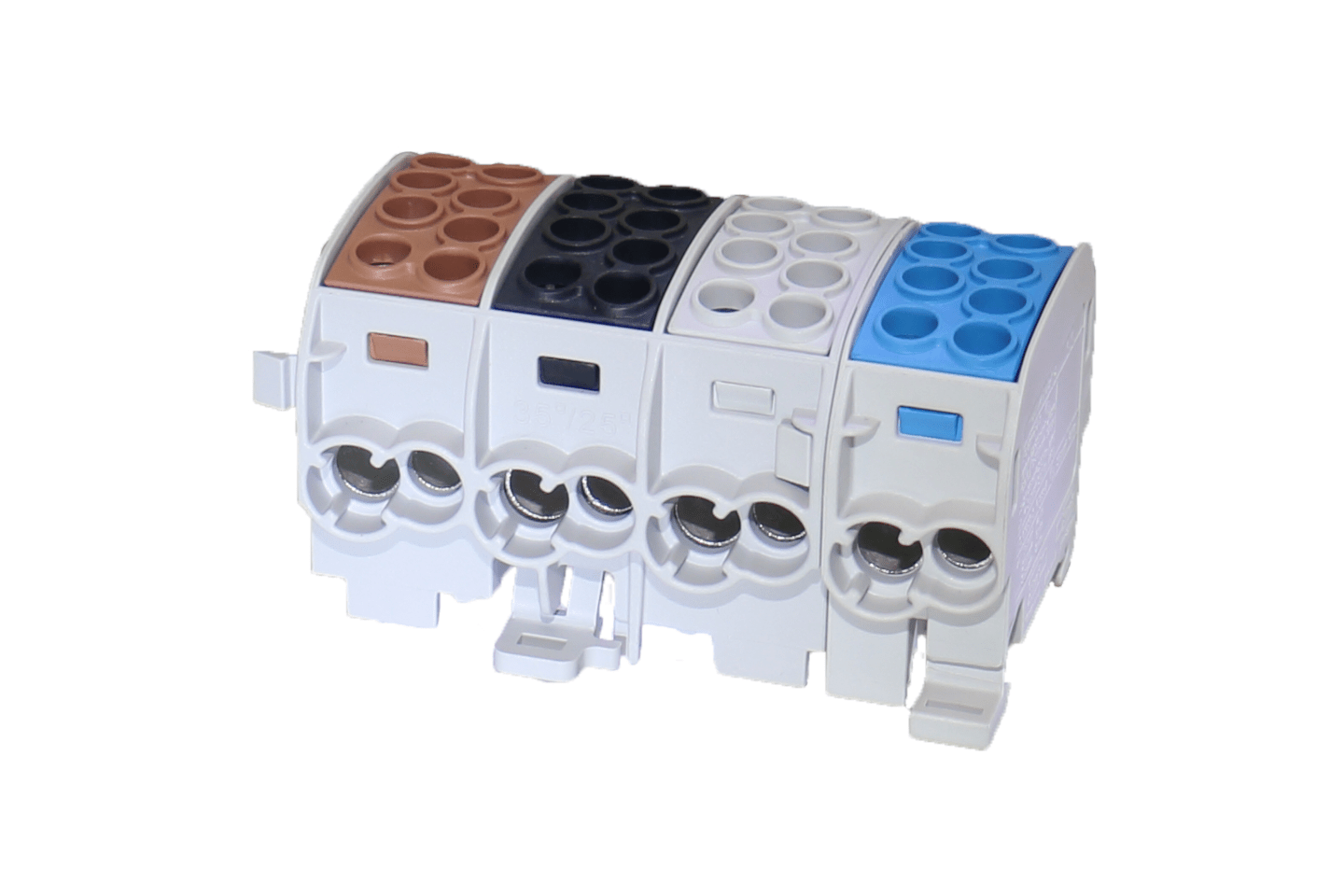

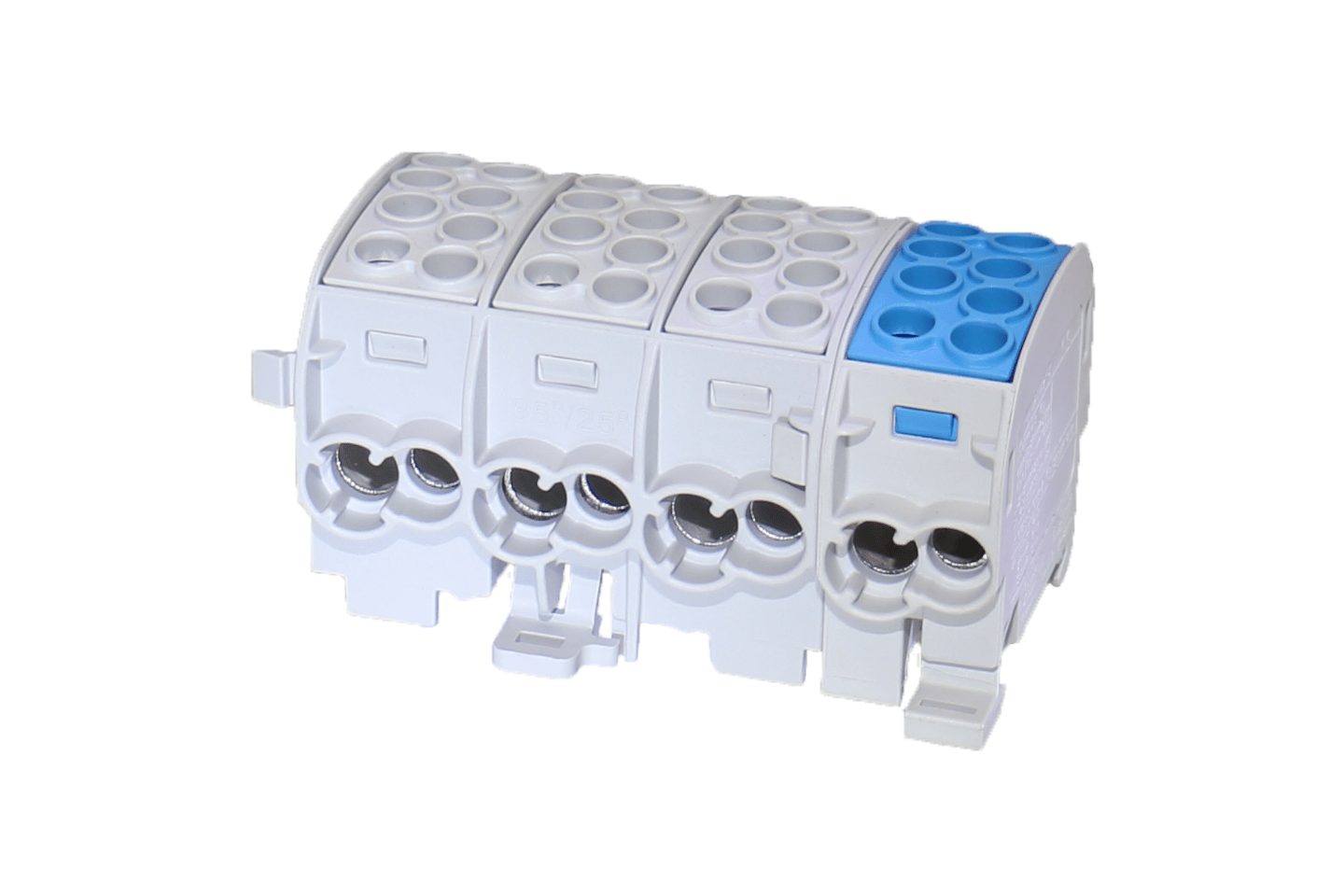

HLAK 35 Type C 4-pole #080240

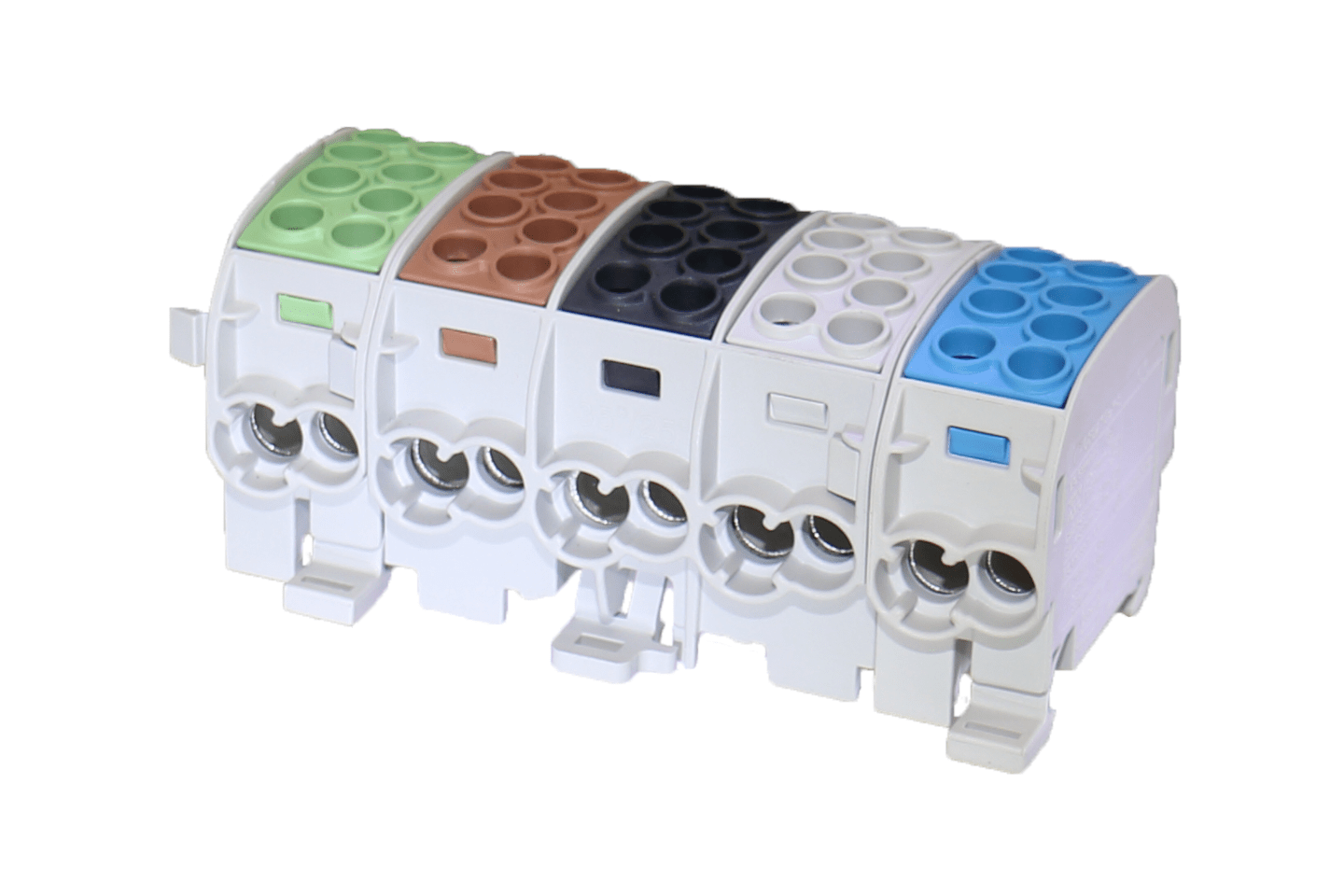

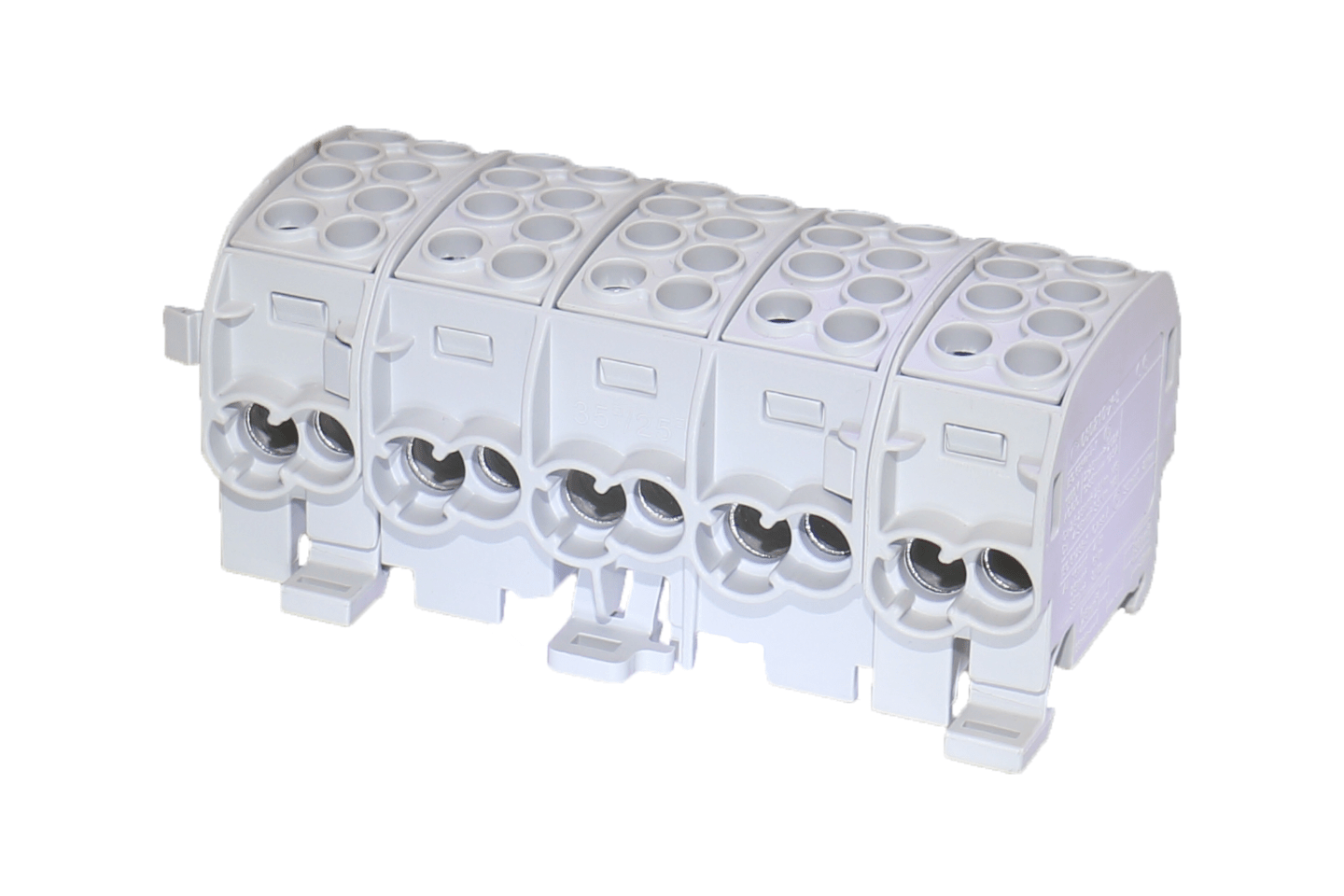

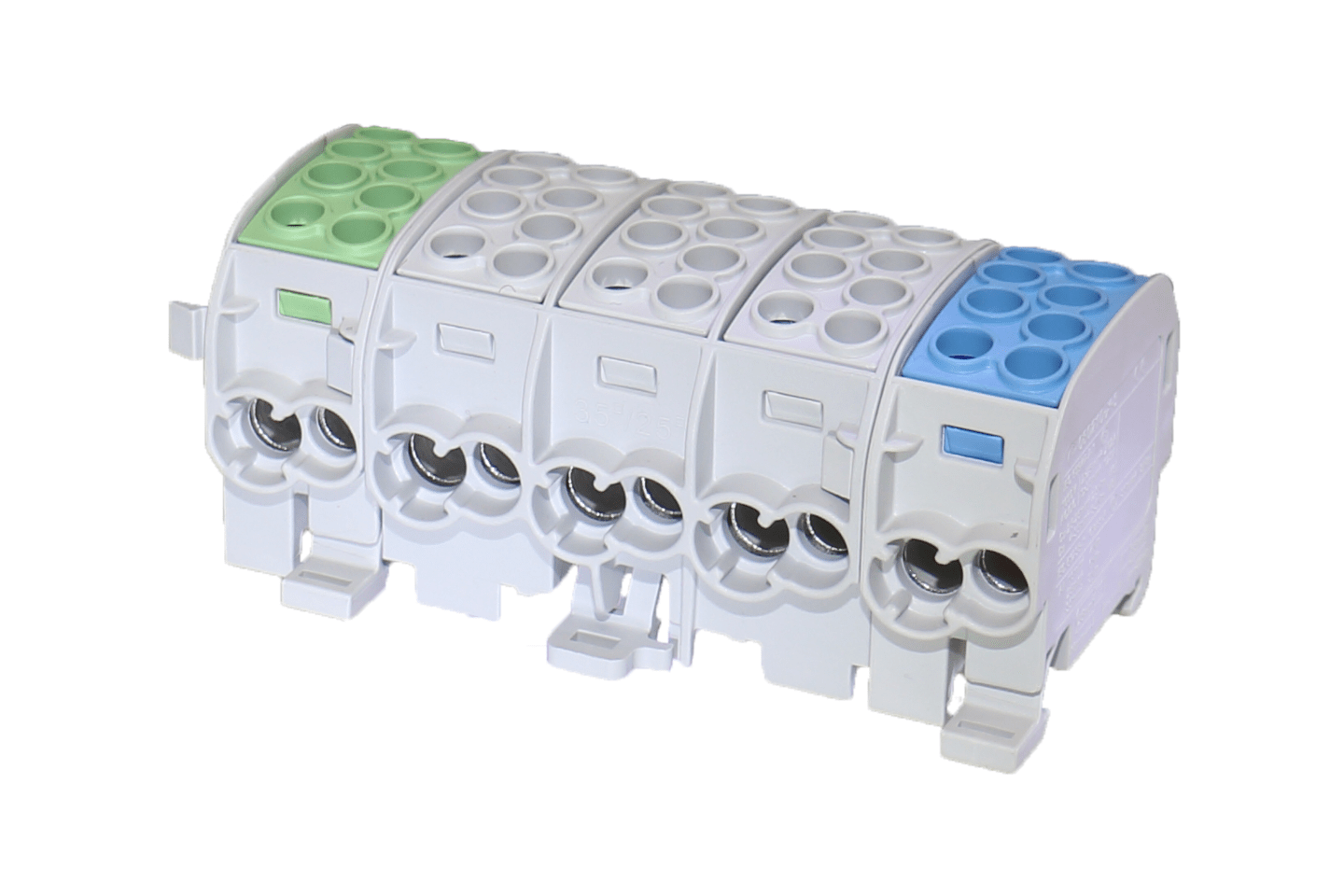

HLAK 35 Type C 5-pole #080250
- light grey
- blue
- green
- brown
- black
Colour combinations available
