RKA 300
- Terminal block
- 1-pole
- connection of 2 x 300 mm²
- for copper and aluminium conductors
The largest terminal block in the RKA series is the RKA 300, which is available as a single-pole version with single and double connection options. The RKA 300 also has a measurement connection. There is also a choice of five cover colours. The RKA 300 has push-through protection, is finger-safe and can be mounted on mounting plates as well as DIN rails.
#087920
Product details
max. 1000 V AC/DC
max. 520 A Cu
max. 340 A Al
IEC 60947-7-1
UL-1059 / CSA 22.2 No.158-10
2x 300 – 150 mm² (600 – 300 kcmil)
2x 240 – 35 mm² (500 kcmil – 2 AWG)
1x 10 – 1,5 mm² (8 – 16 AWG)
1x 6 – 1,5 mm² (10 – 16 AWG)
RKA 300 1/4 1-pole #087920

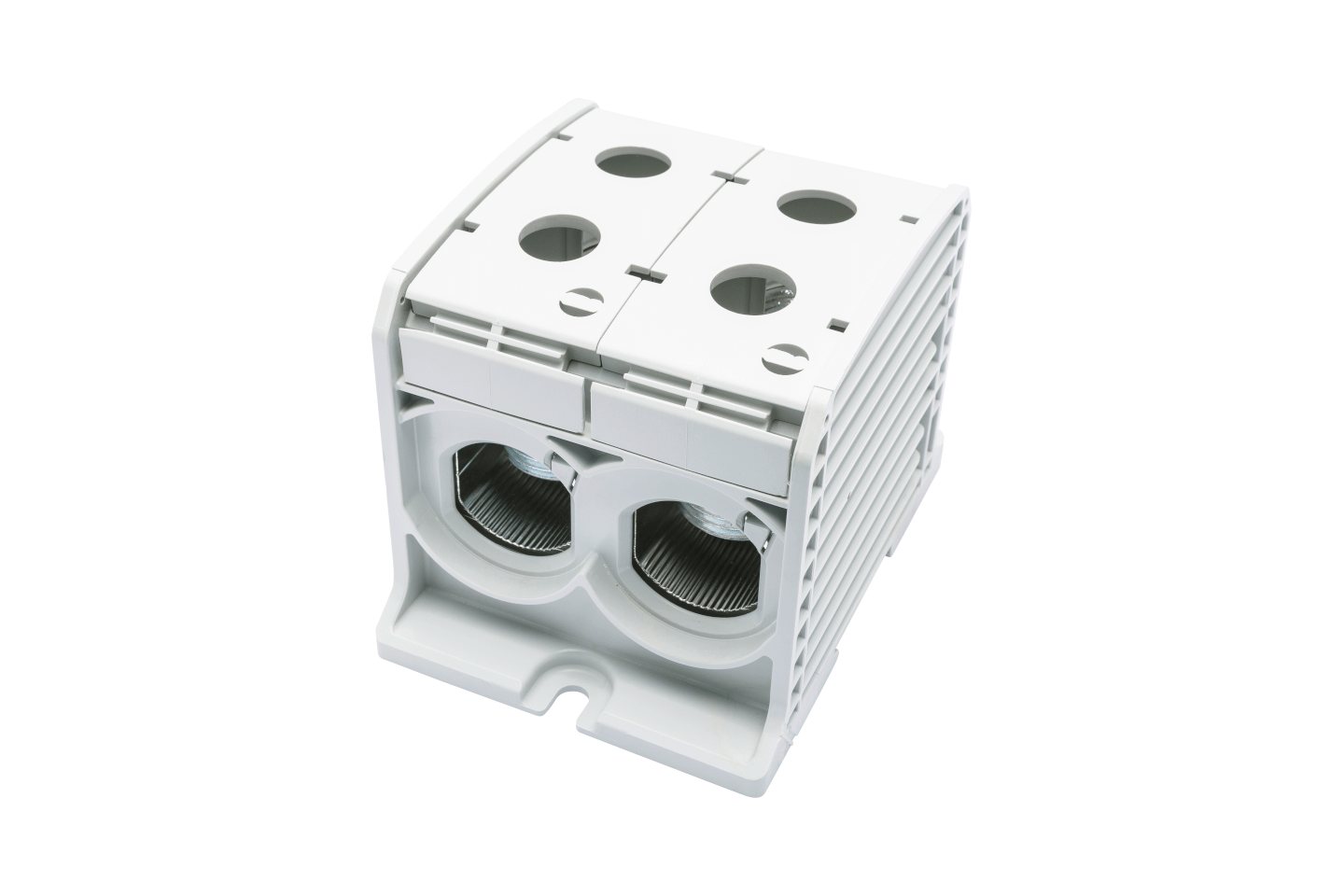

- light grey

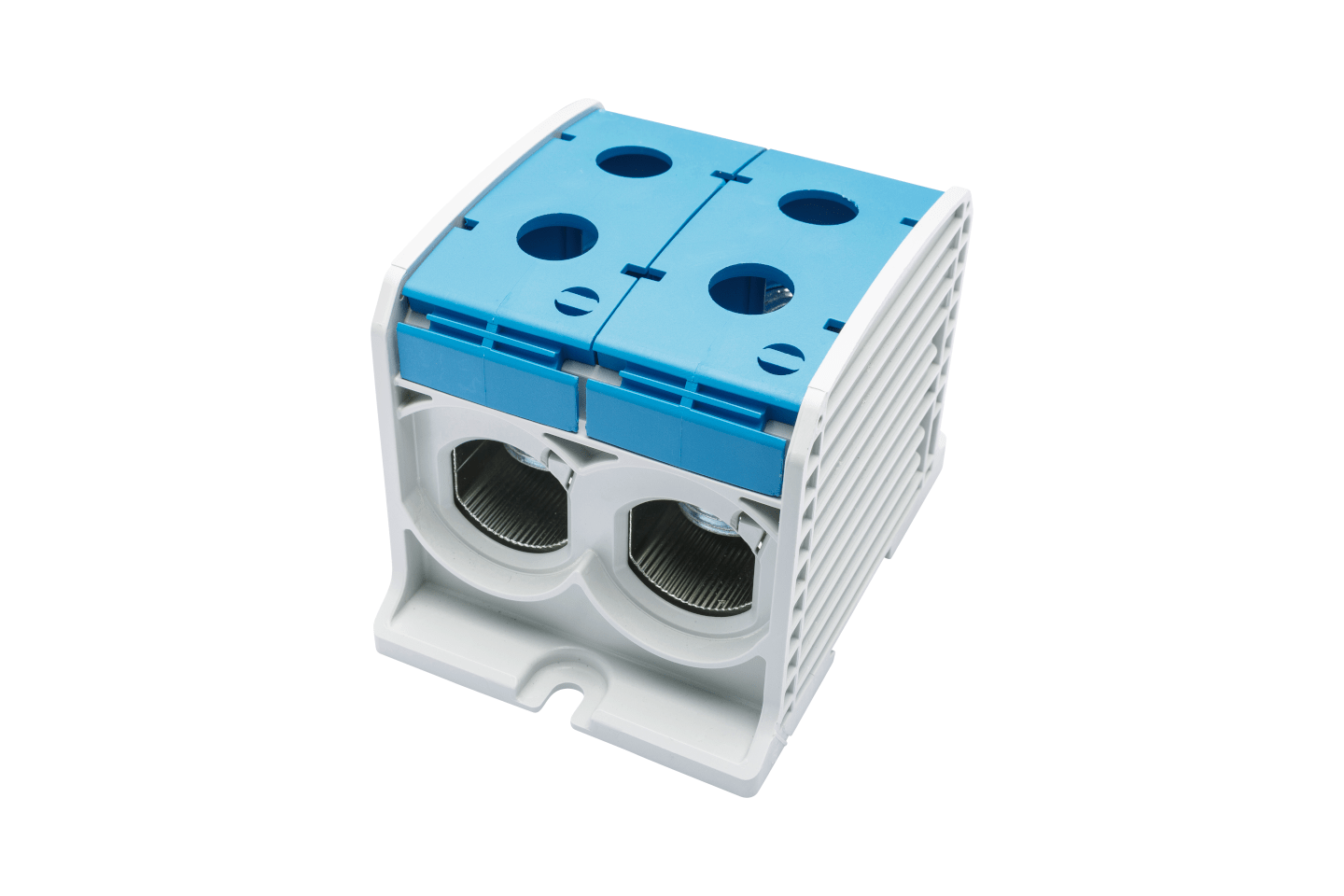

- blue

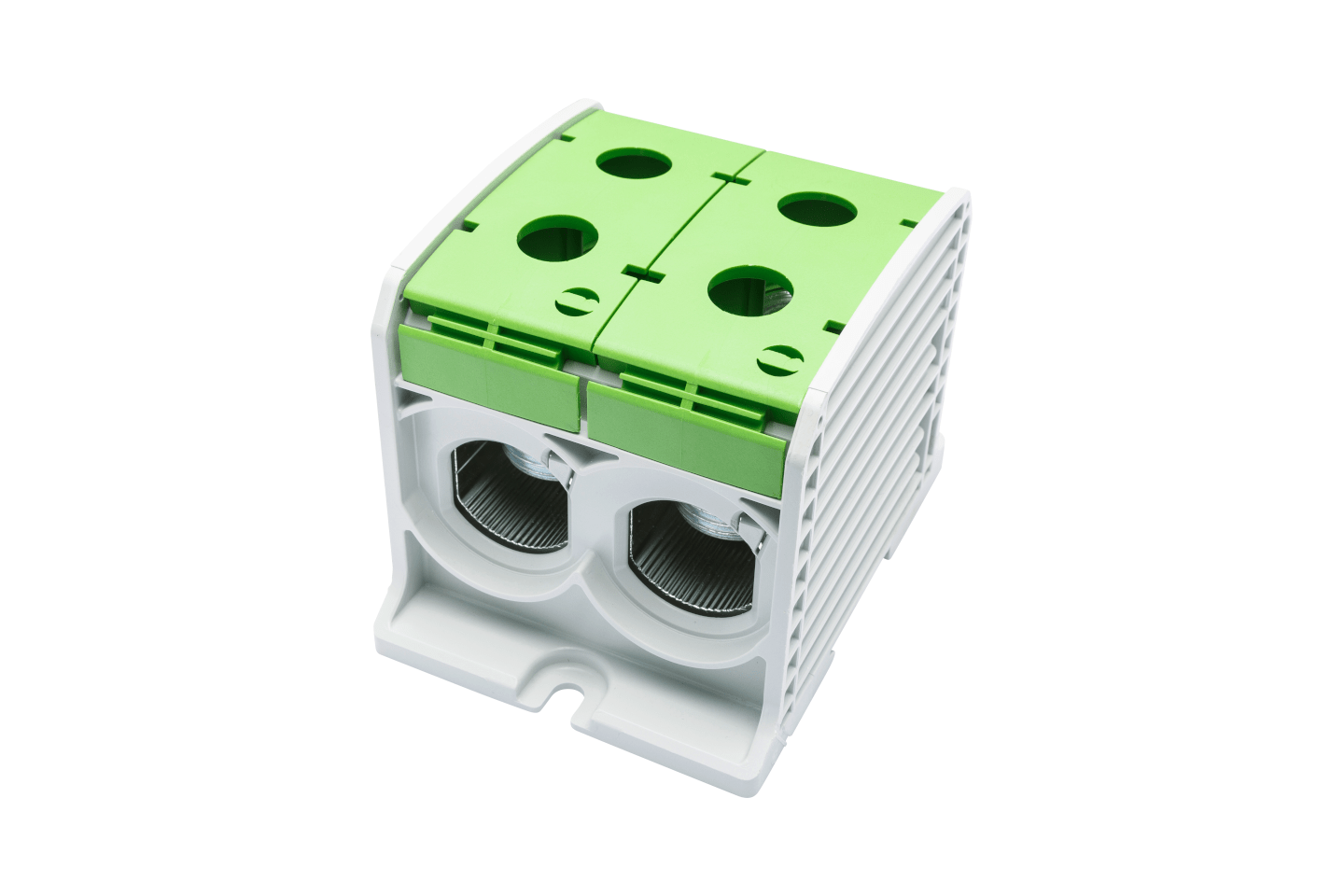

- green

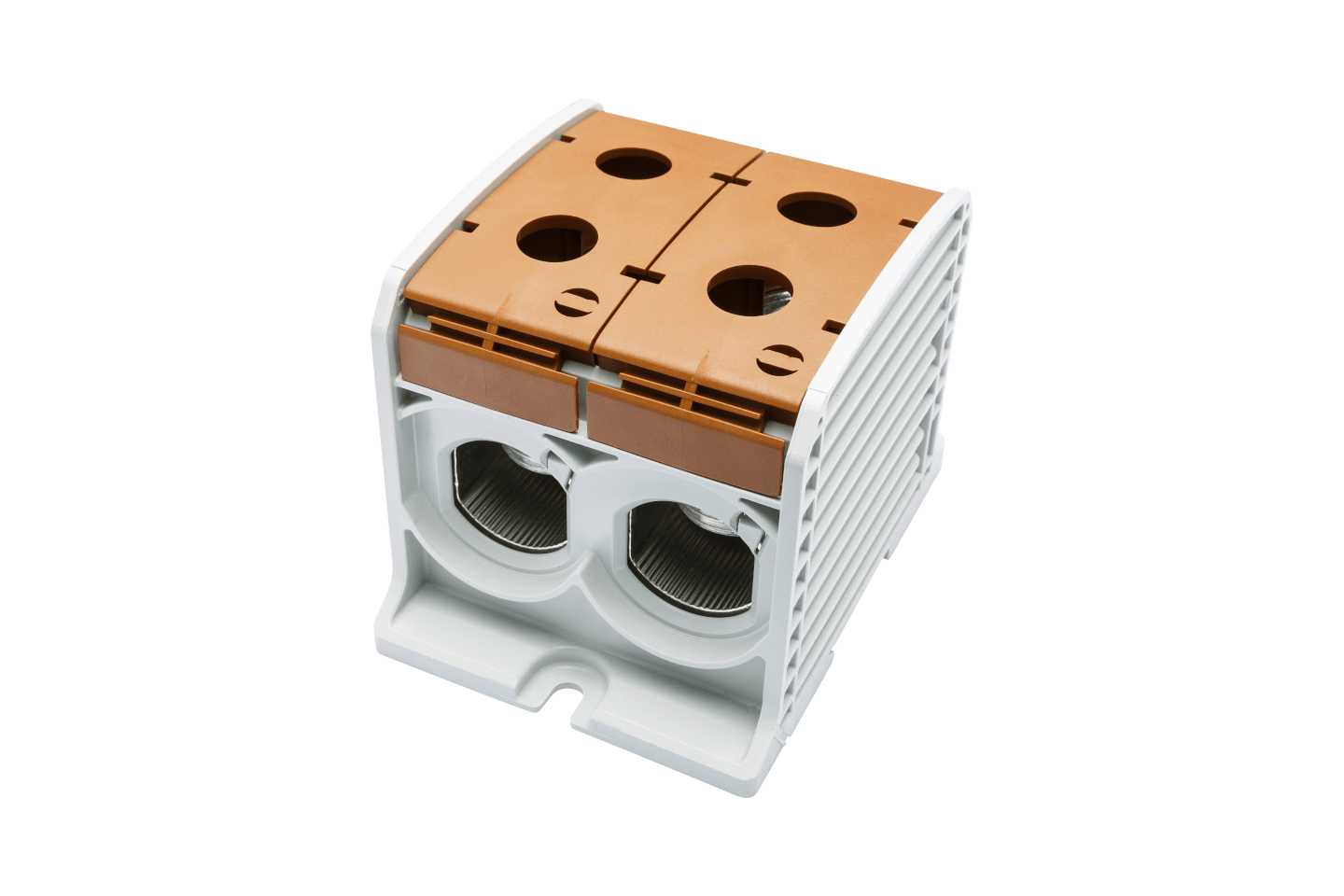

- brown

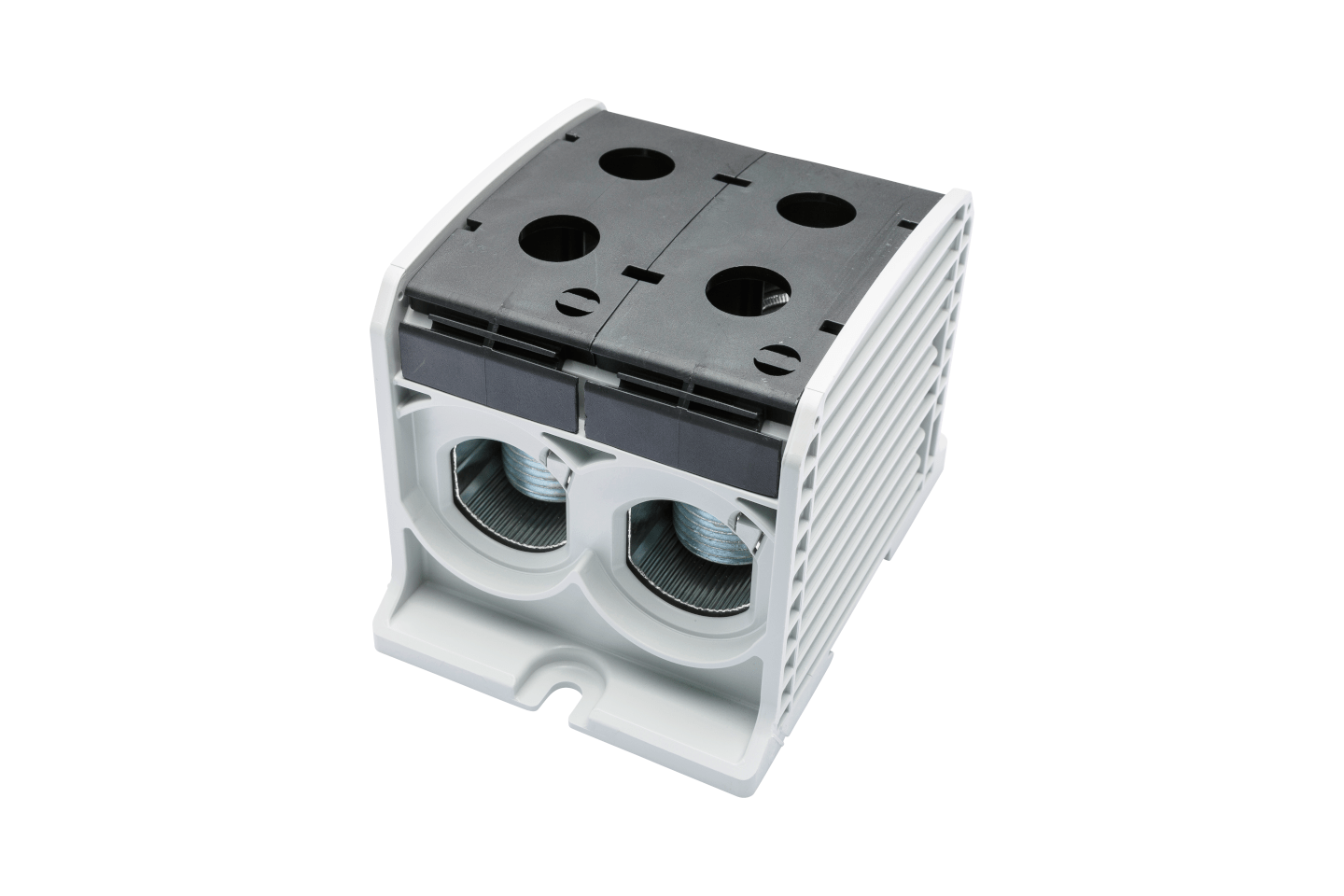

- black
Accessories

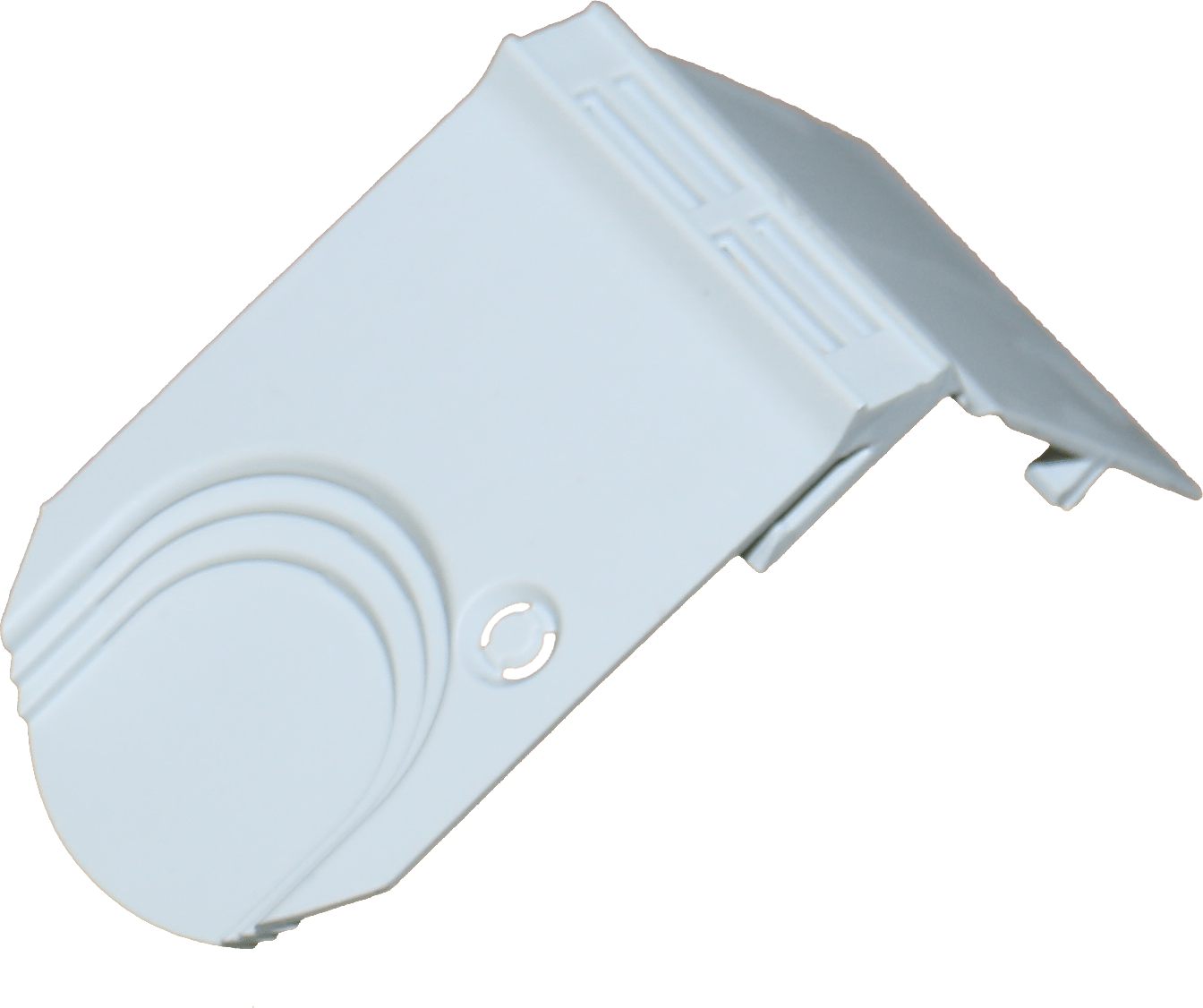

Dust cover #087900
