RKA 185
- Terminal block
- 1-pole
- connection of 2 x 185 mm²
- for copper and aluminium conductors
The RKA 185 terminal block is available in two versions, with different numbers of connection points. It is approved for copper and aluminium conductors and also has a measurement connection. The RKA 185 has a push-through protection, is finger-safe and can be mounted on mounting plates or DIN rail.
#087810
Product details
max. 1000 V AC/DC
max. 353 A Cu
max. 250 A Al
IEC 60947-7-1
UL-1059 / CSA 22.2 No.158-10
2x 185 – 95 mm² (350 kcmil – 3/0 AWG)
2x 150 – 25 mm² (300 kcmil – 4 AWG)
1x 10 – 1,5 mm² (8 – 16 AWG)
1x 6 – 1,5 mm² (10 – 16 AWG)

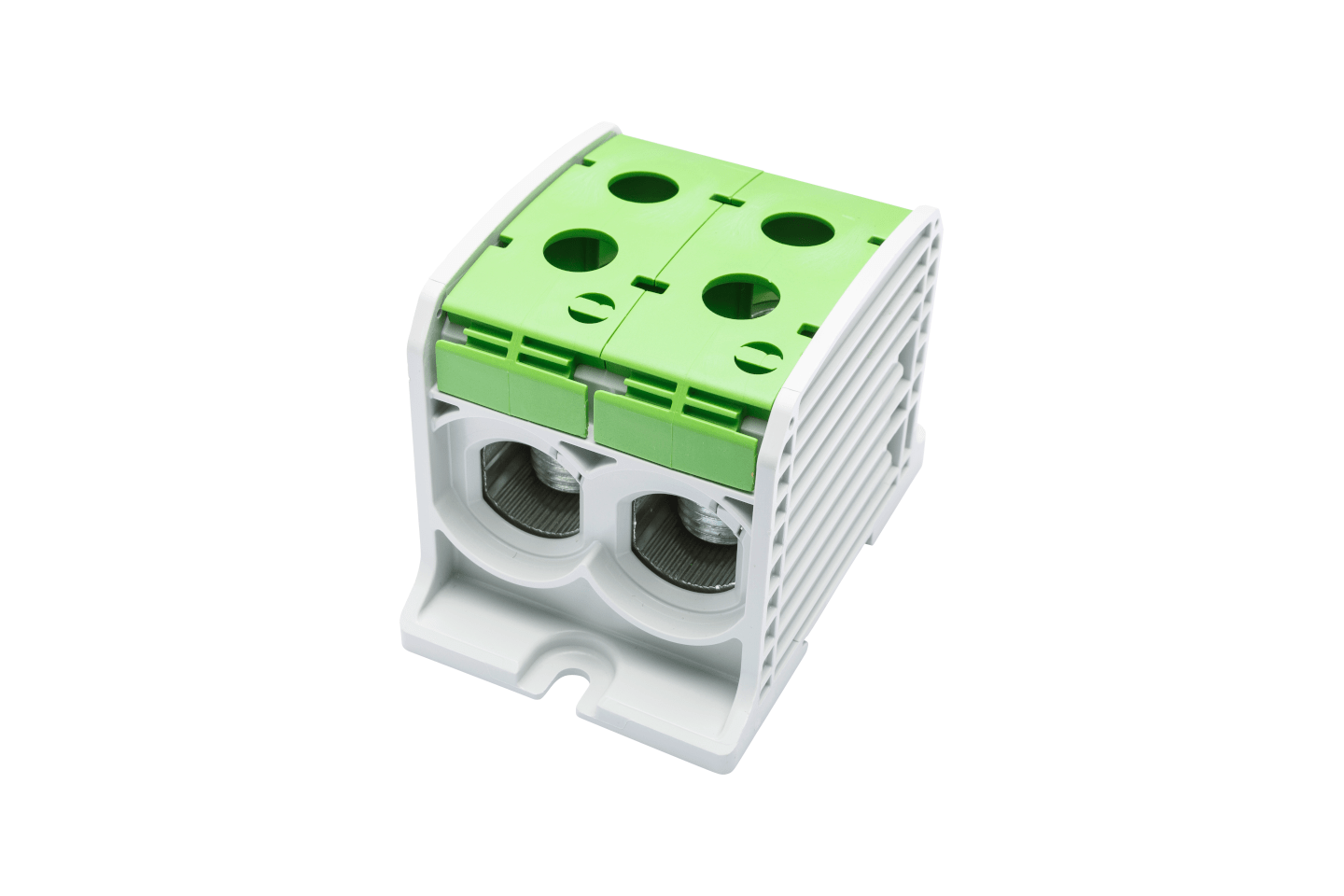

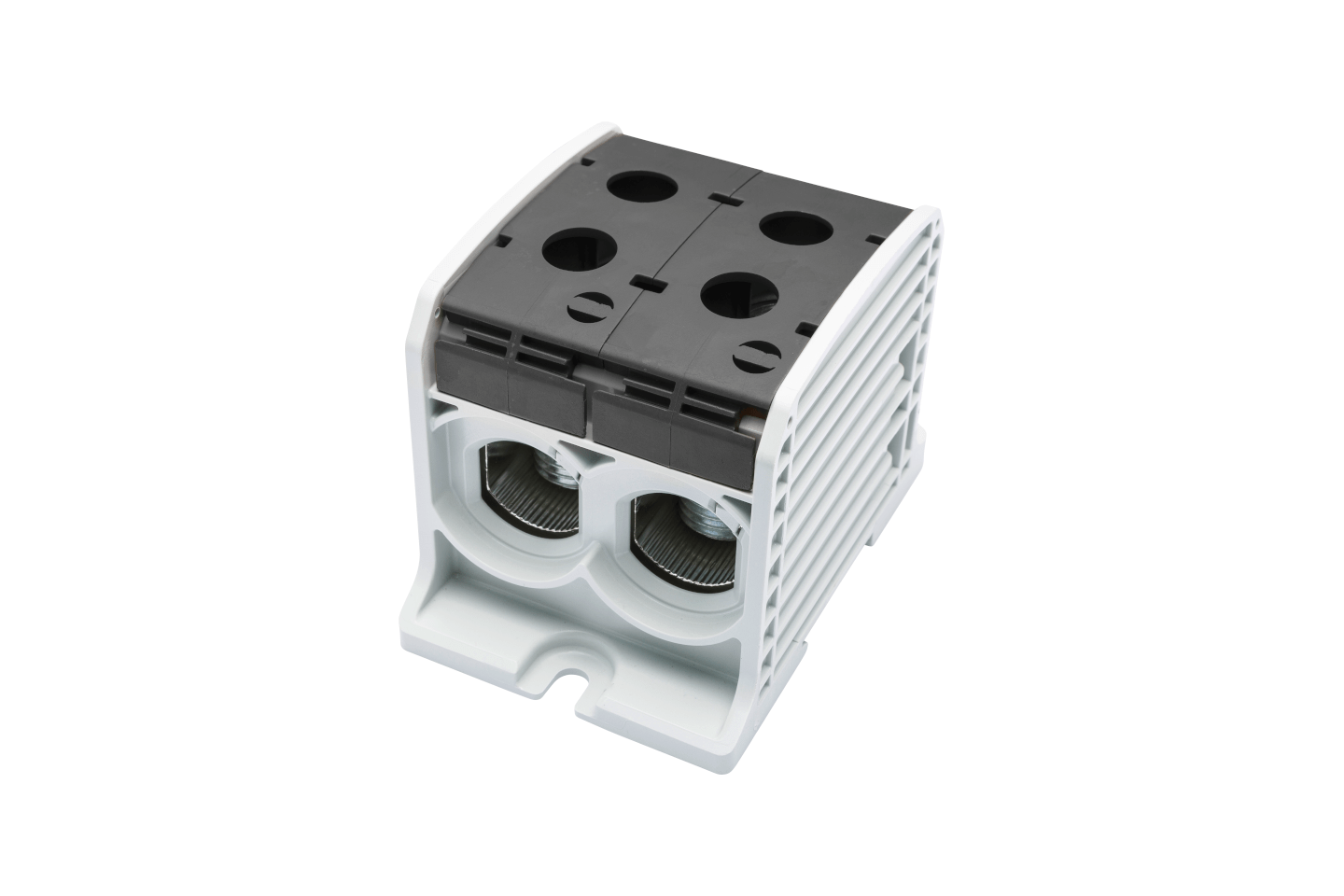

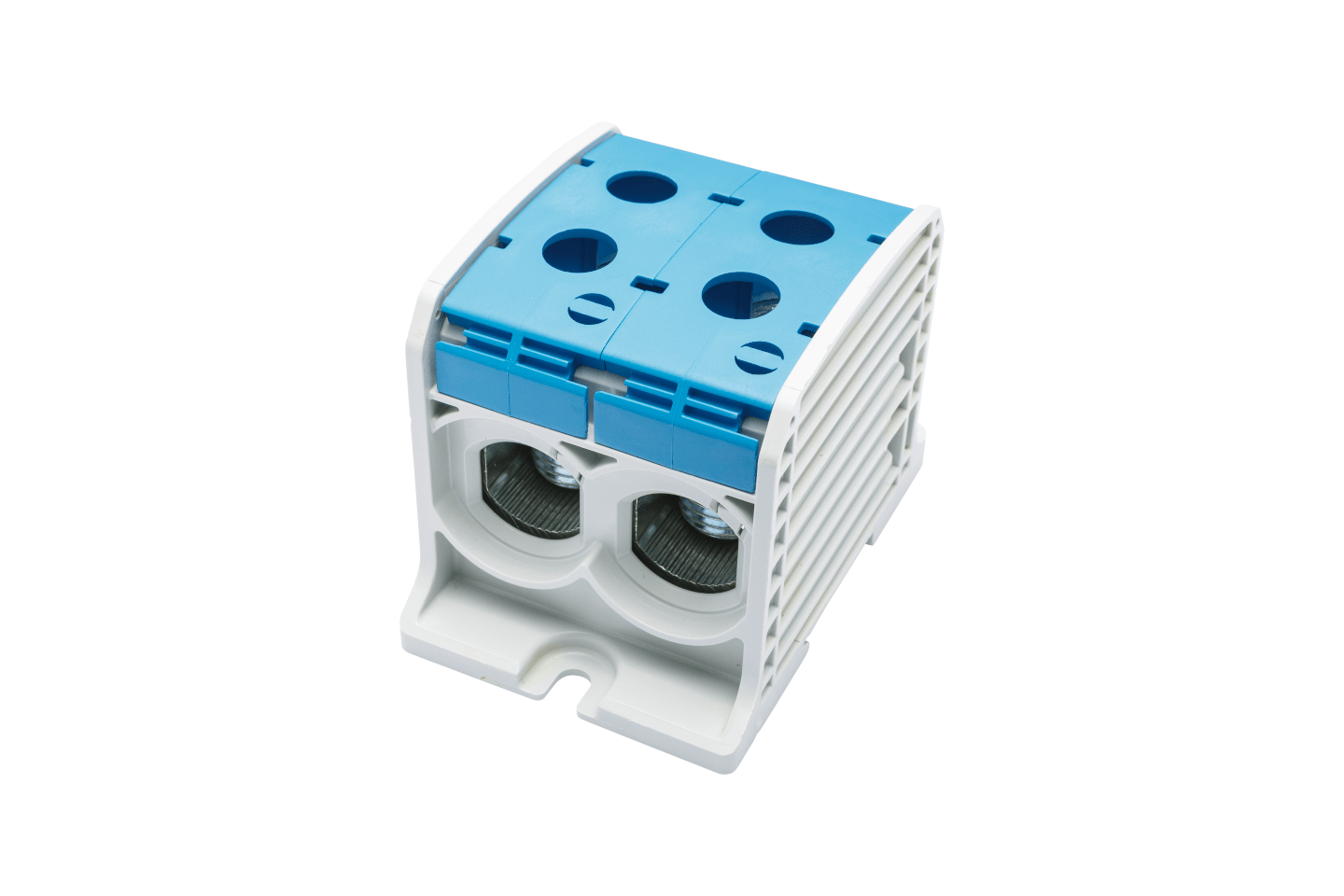

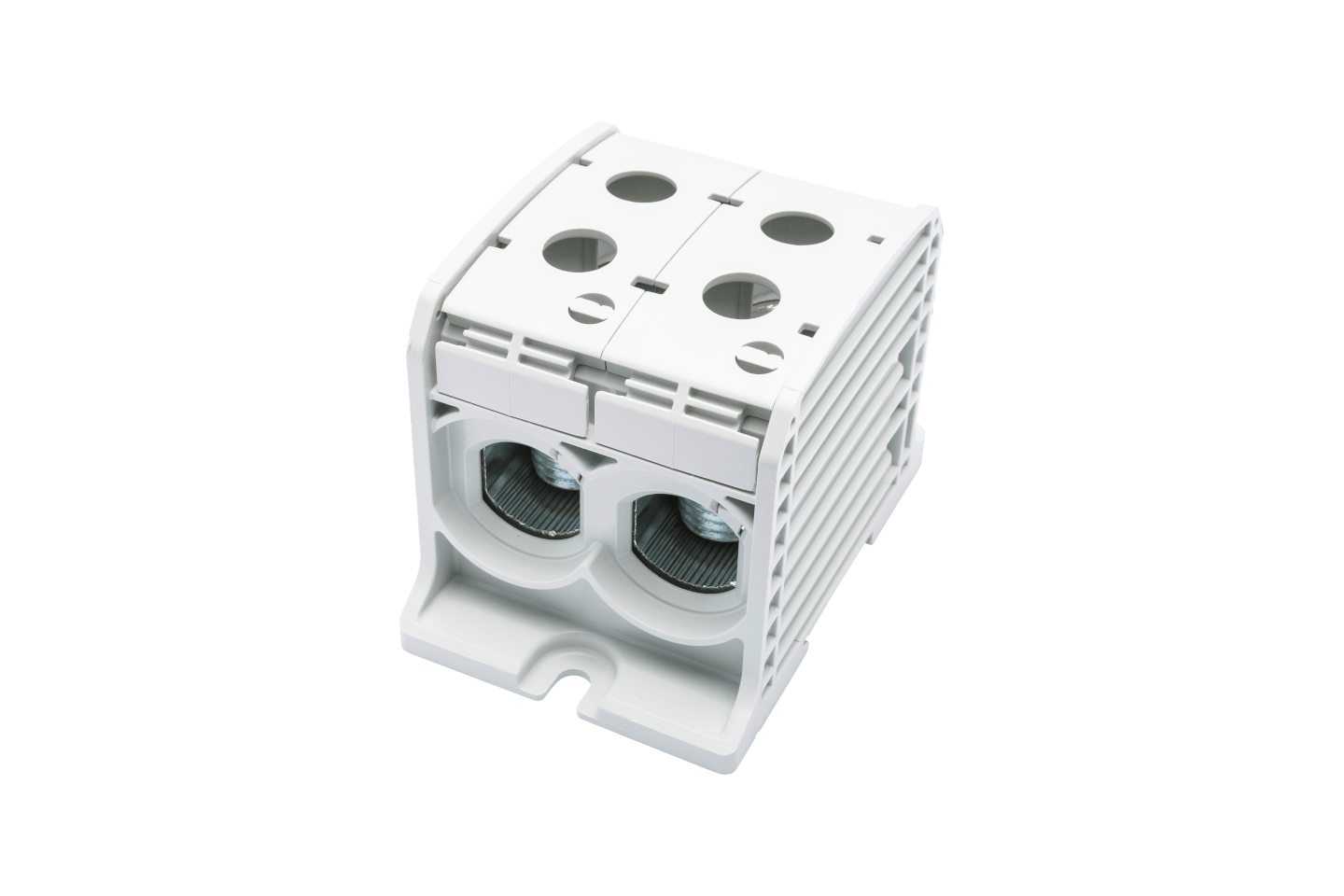

RKA 185 1/4 1-pole
- light grey
- blue
- green
- brown
- black
Accessories

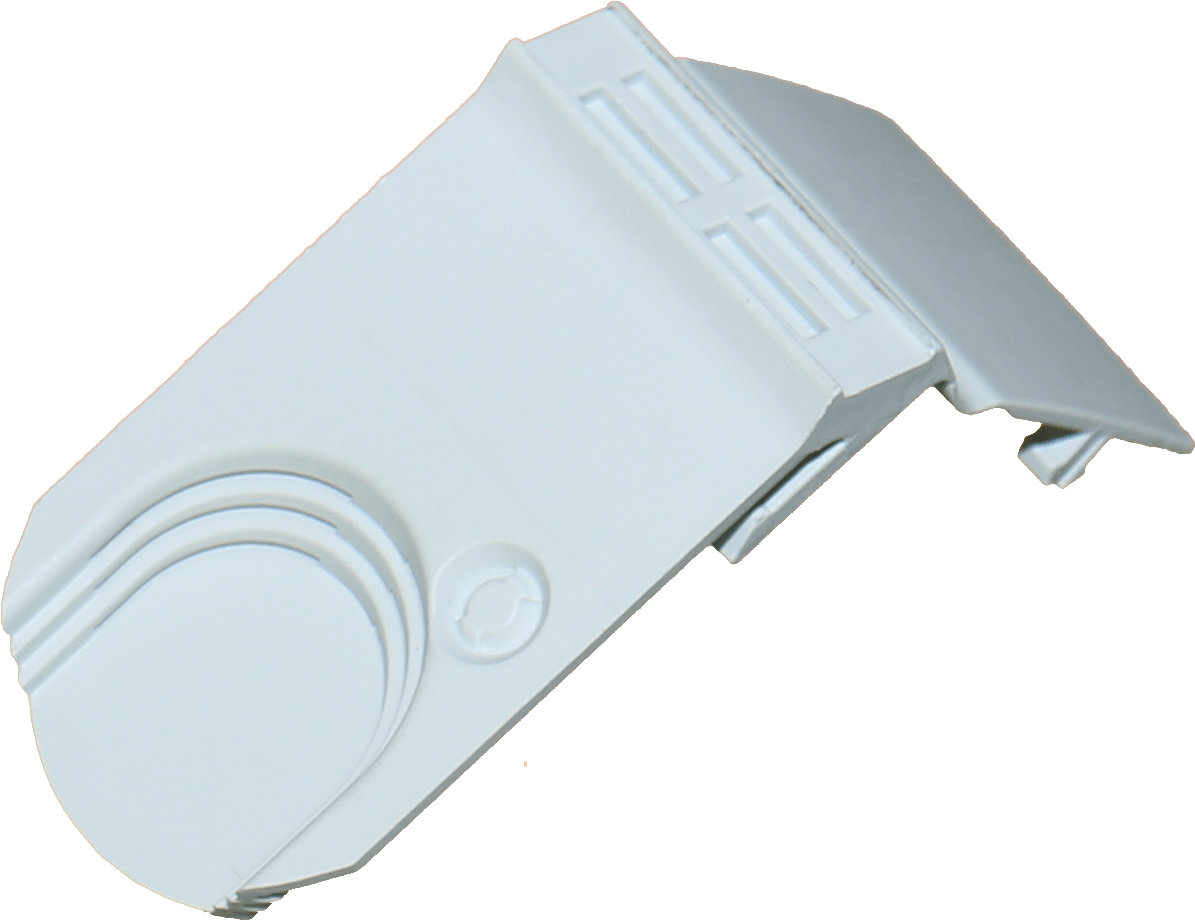

Dust cover #087800-0-0
