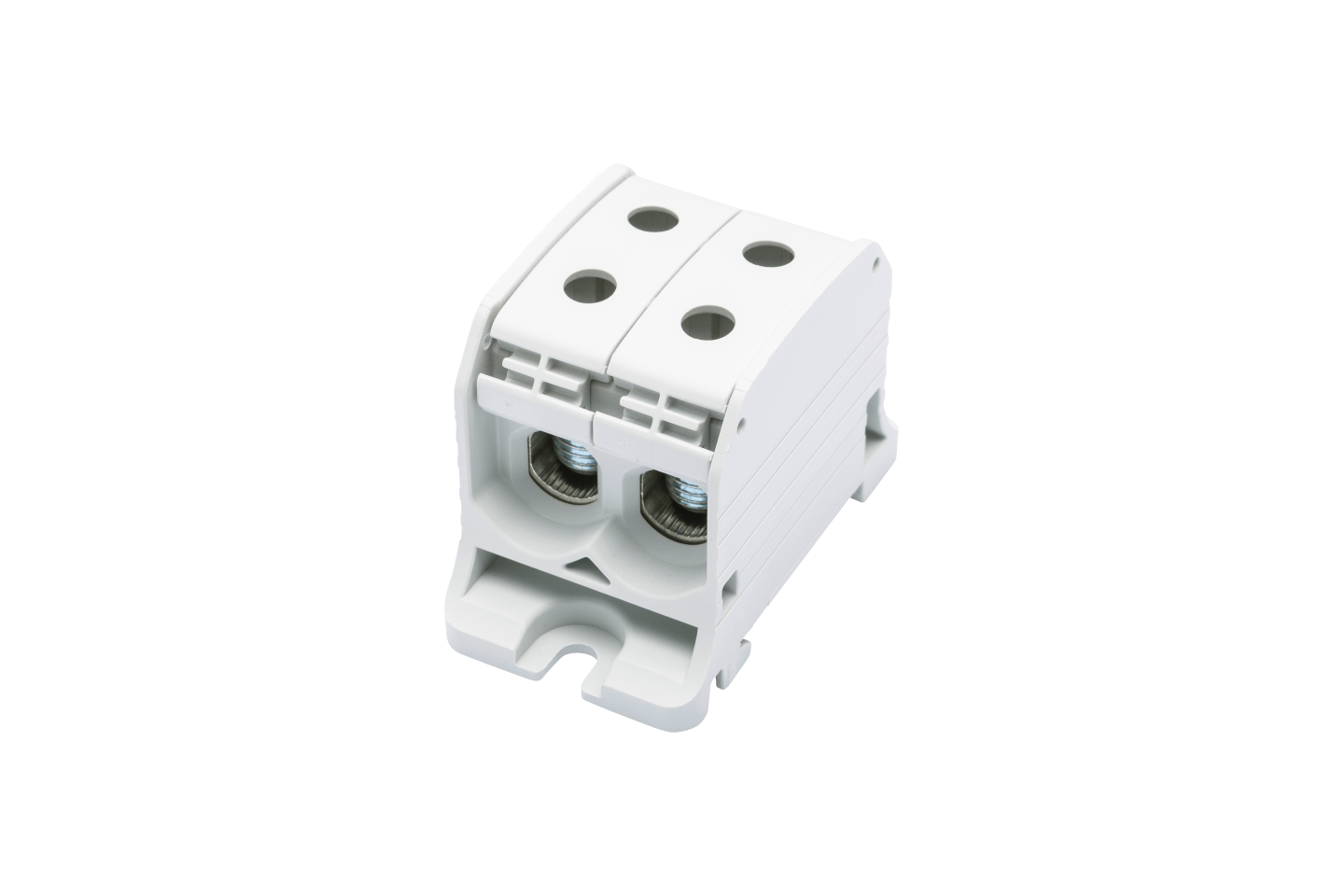

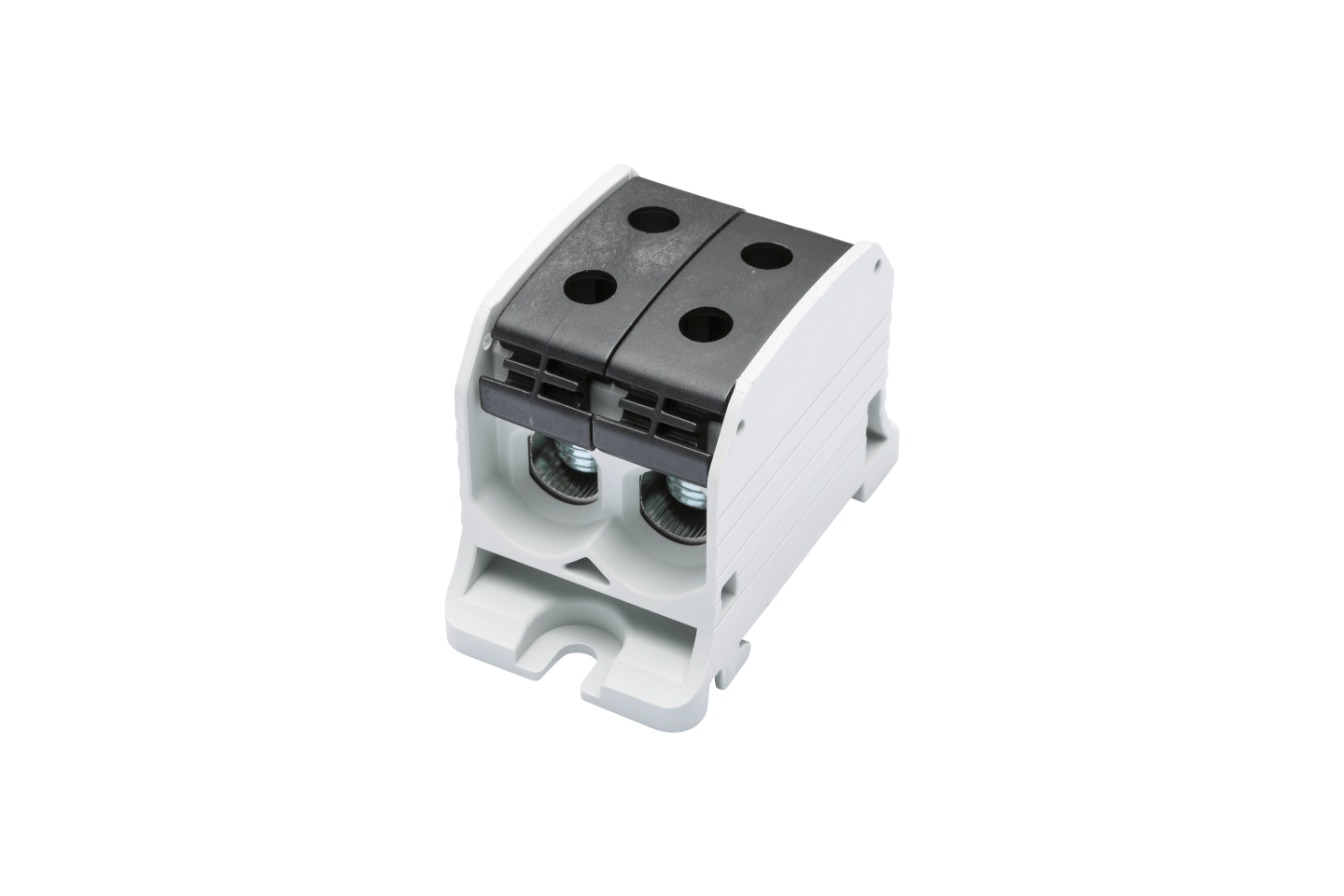

RKA 50

  • Terminal block
  • 1-pole
  • connection of 2 x 50 mm²
  • for copper and aluminium conductors

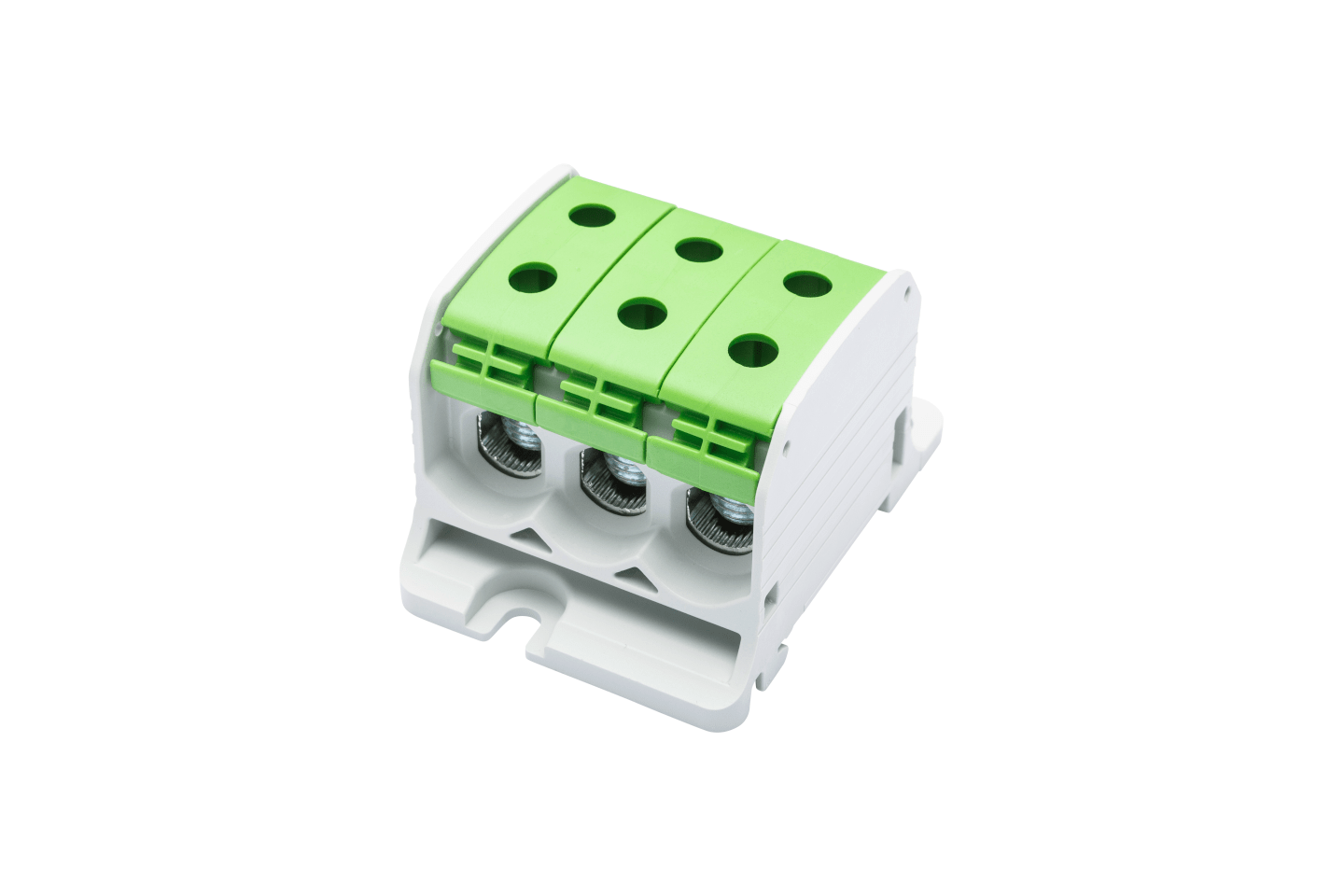

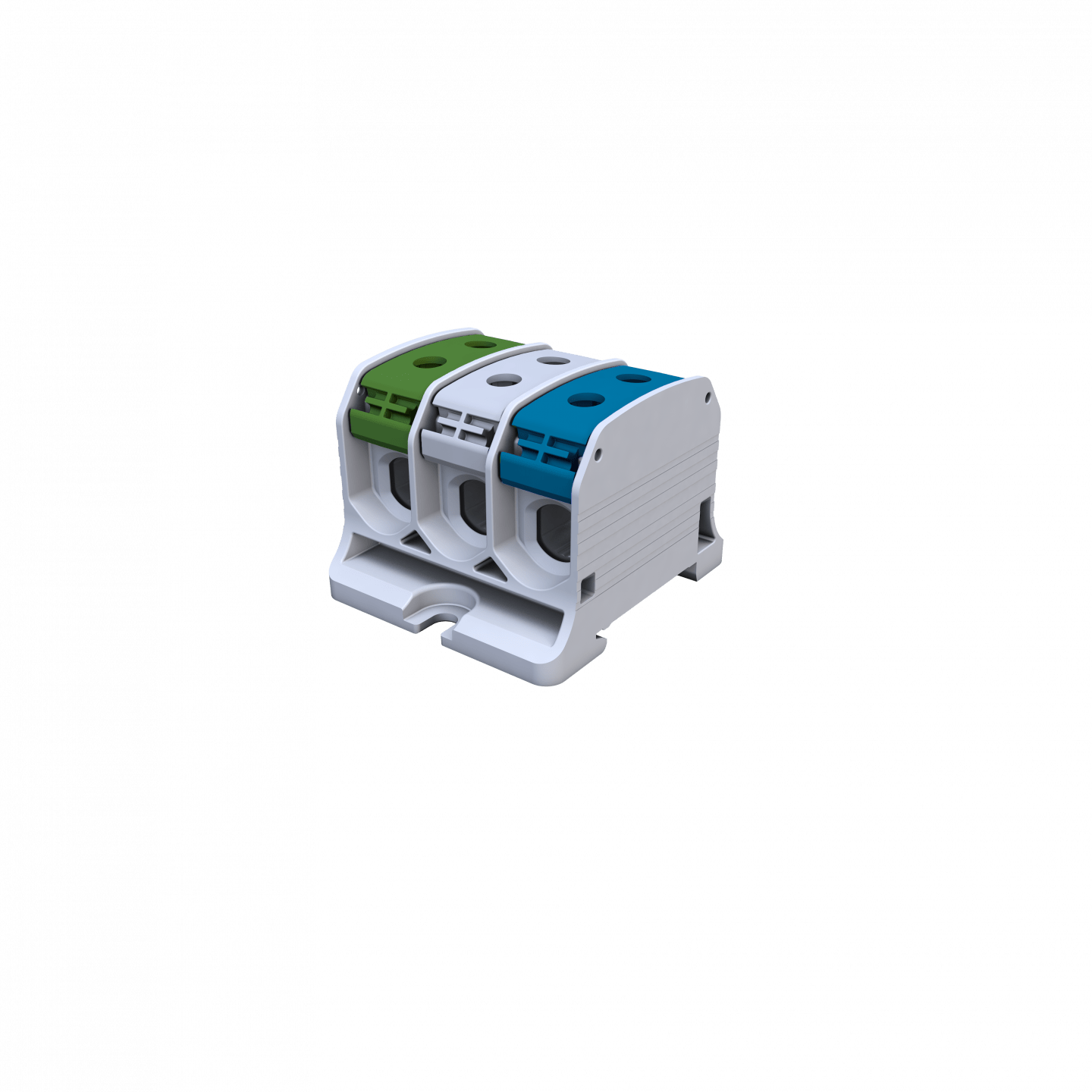

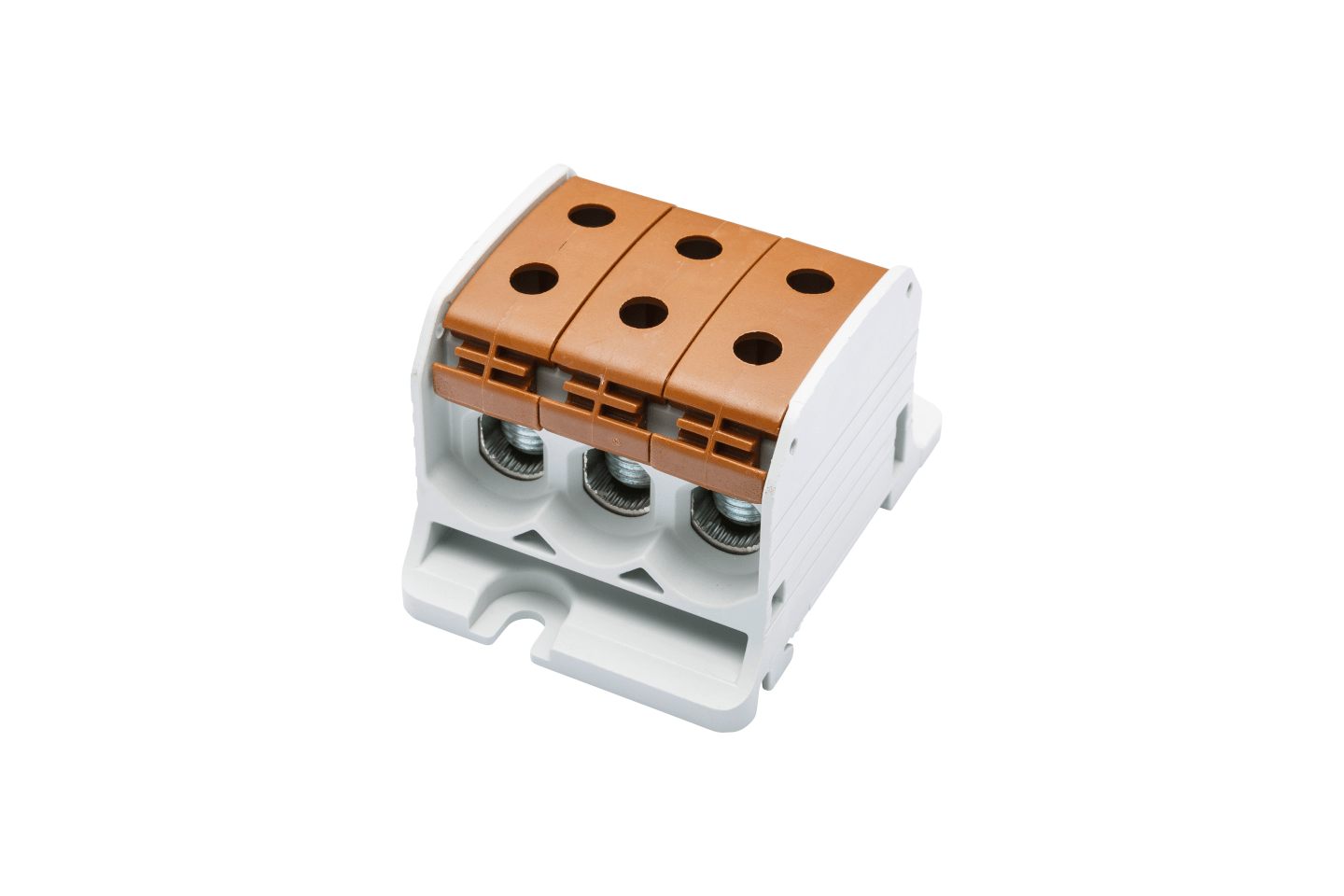

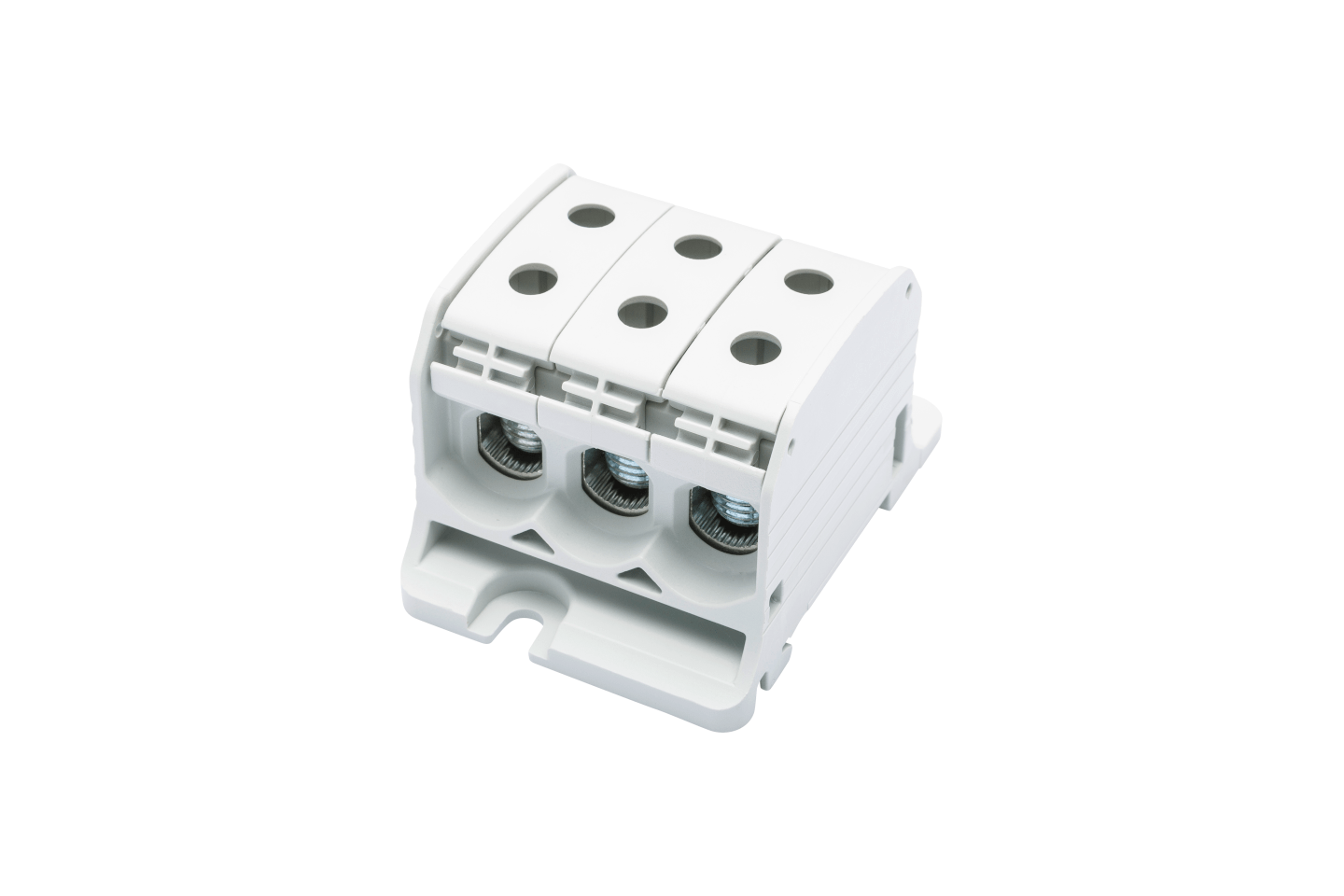

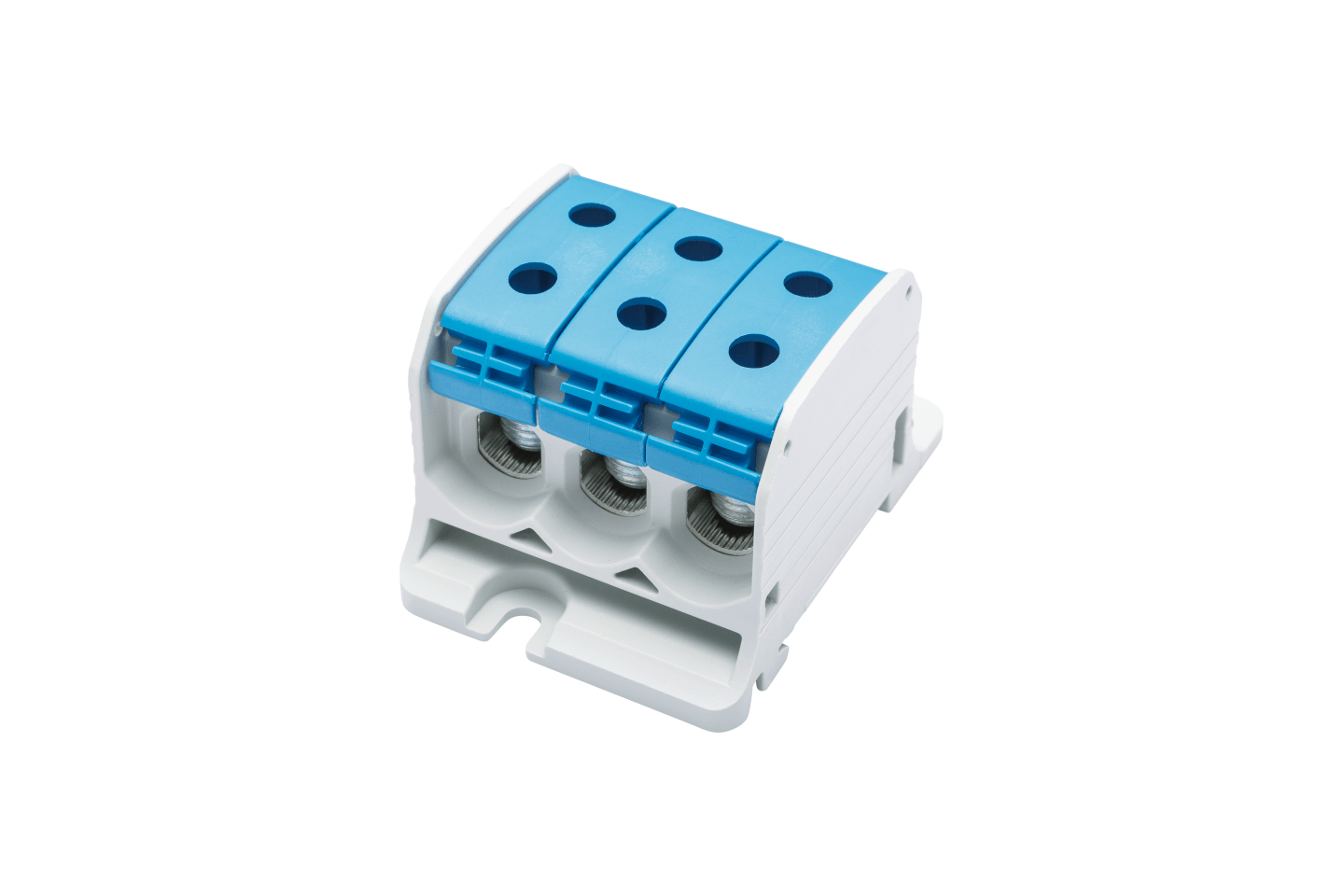

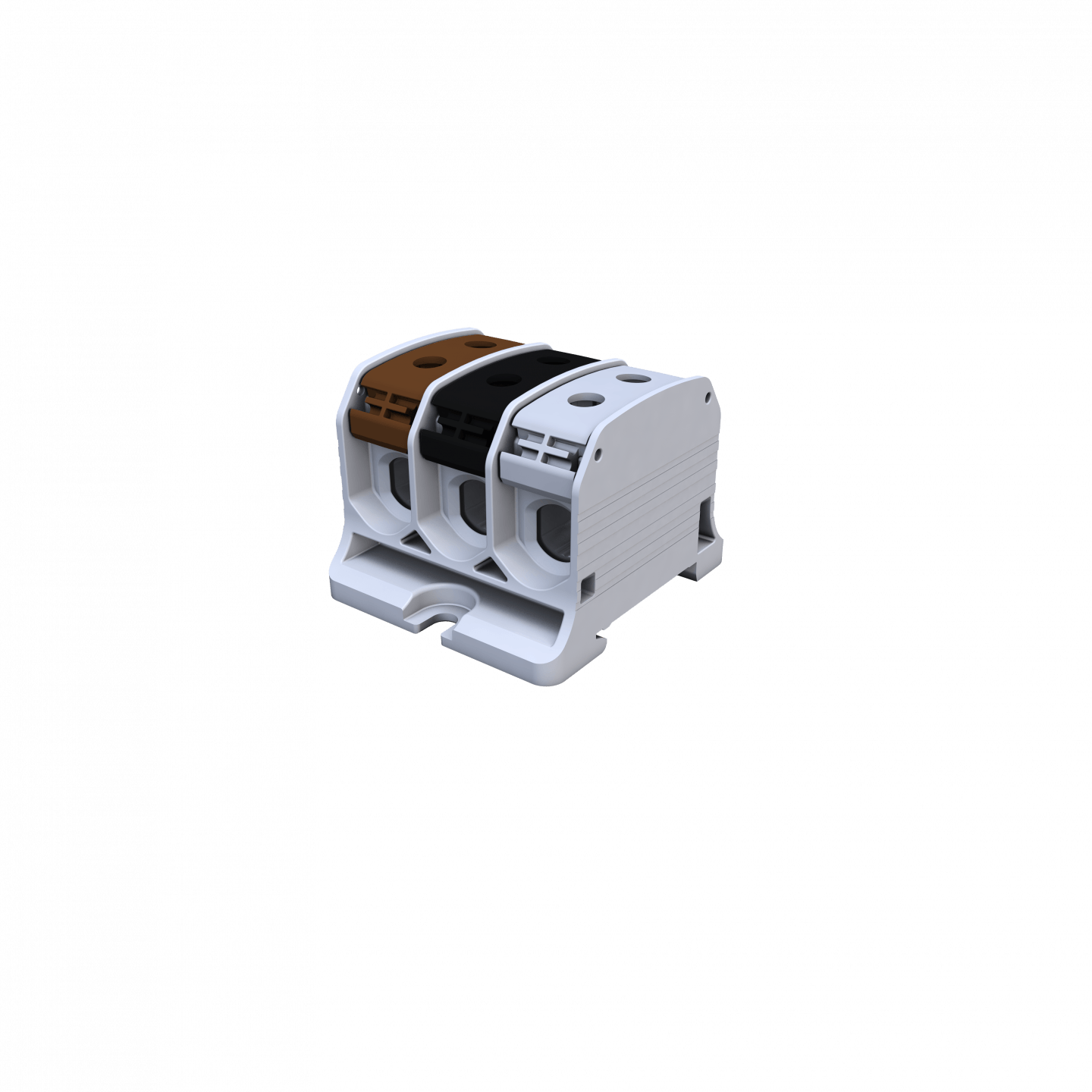

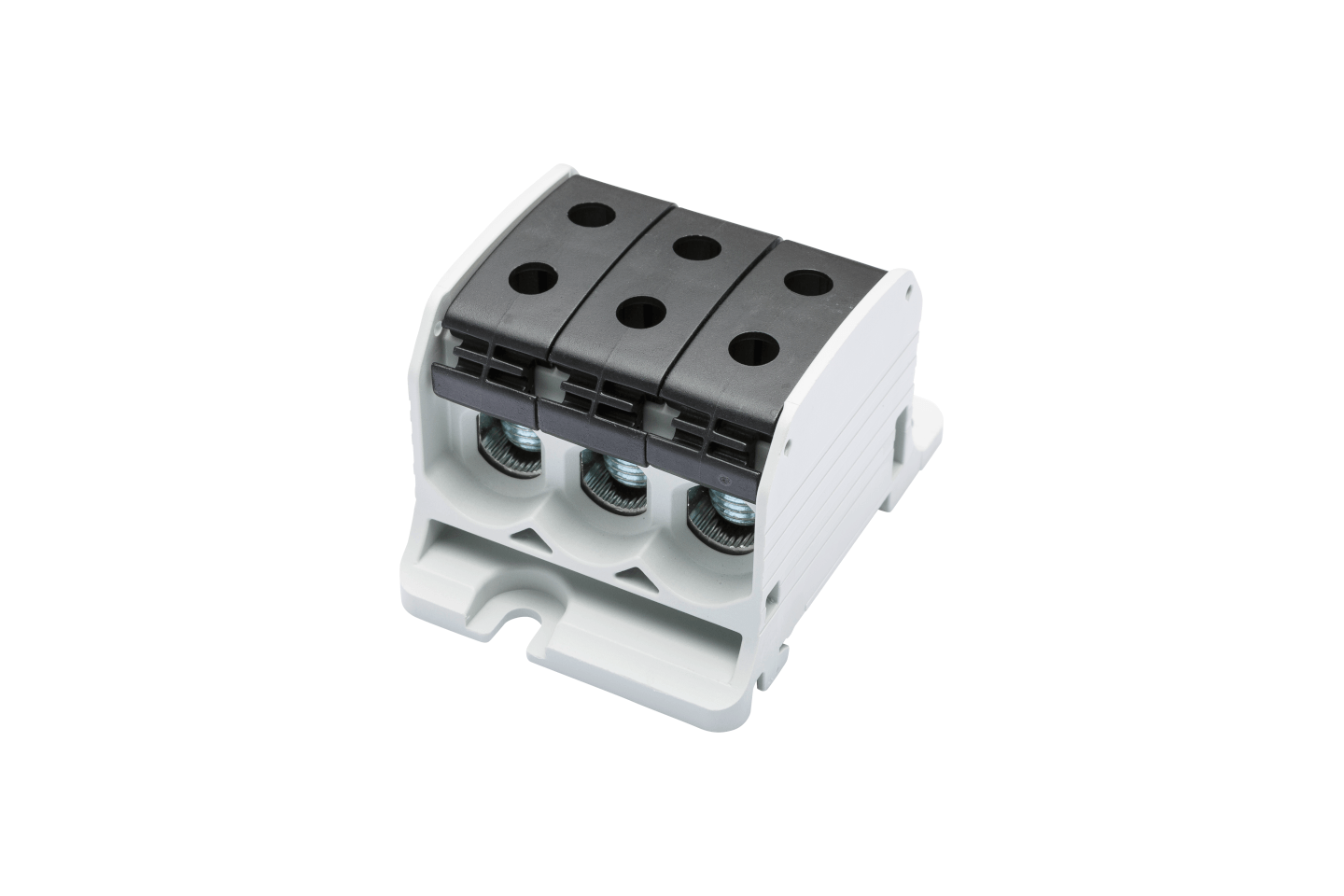

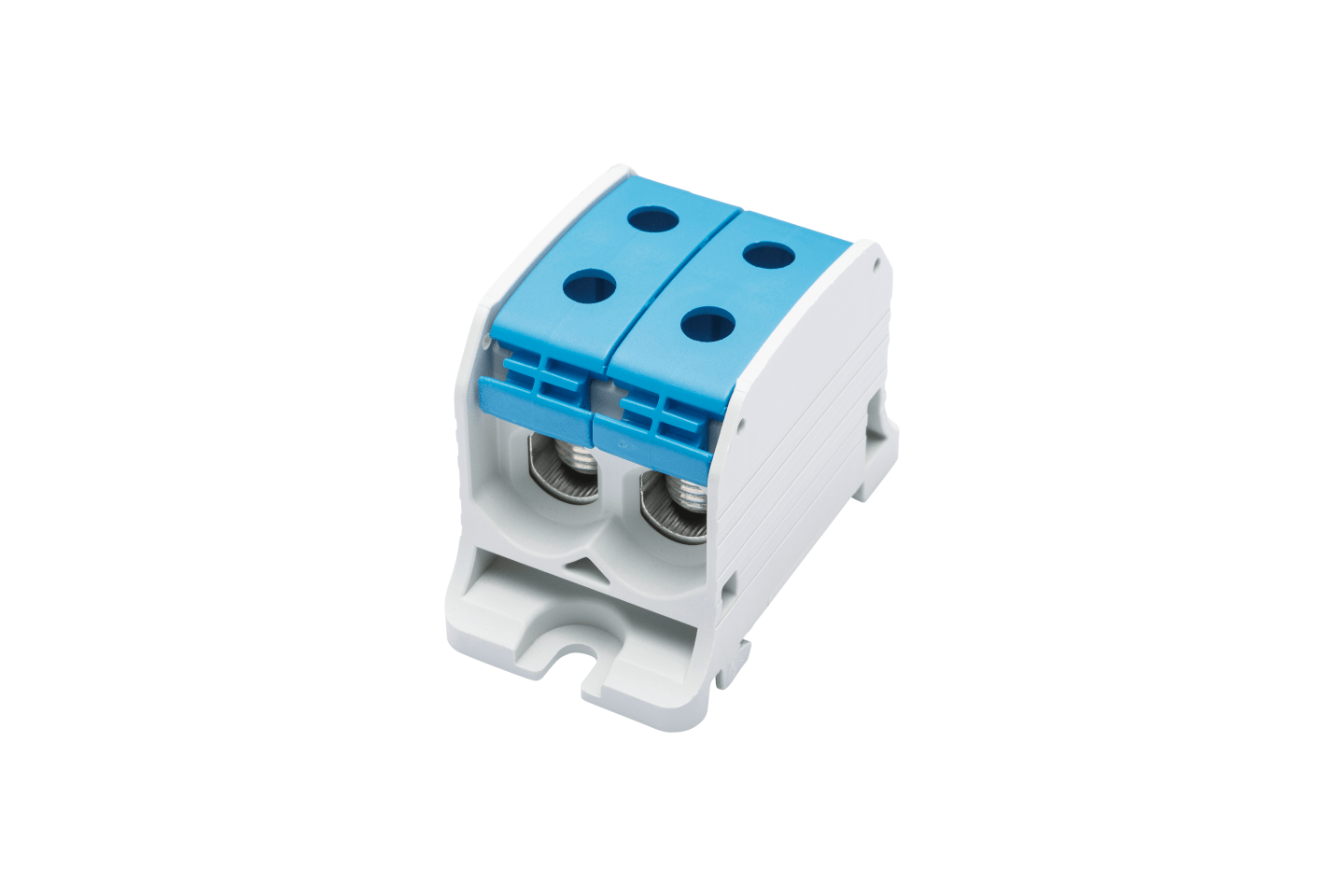

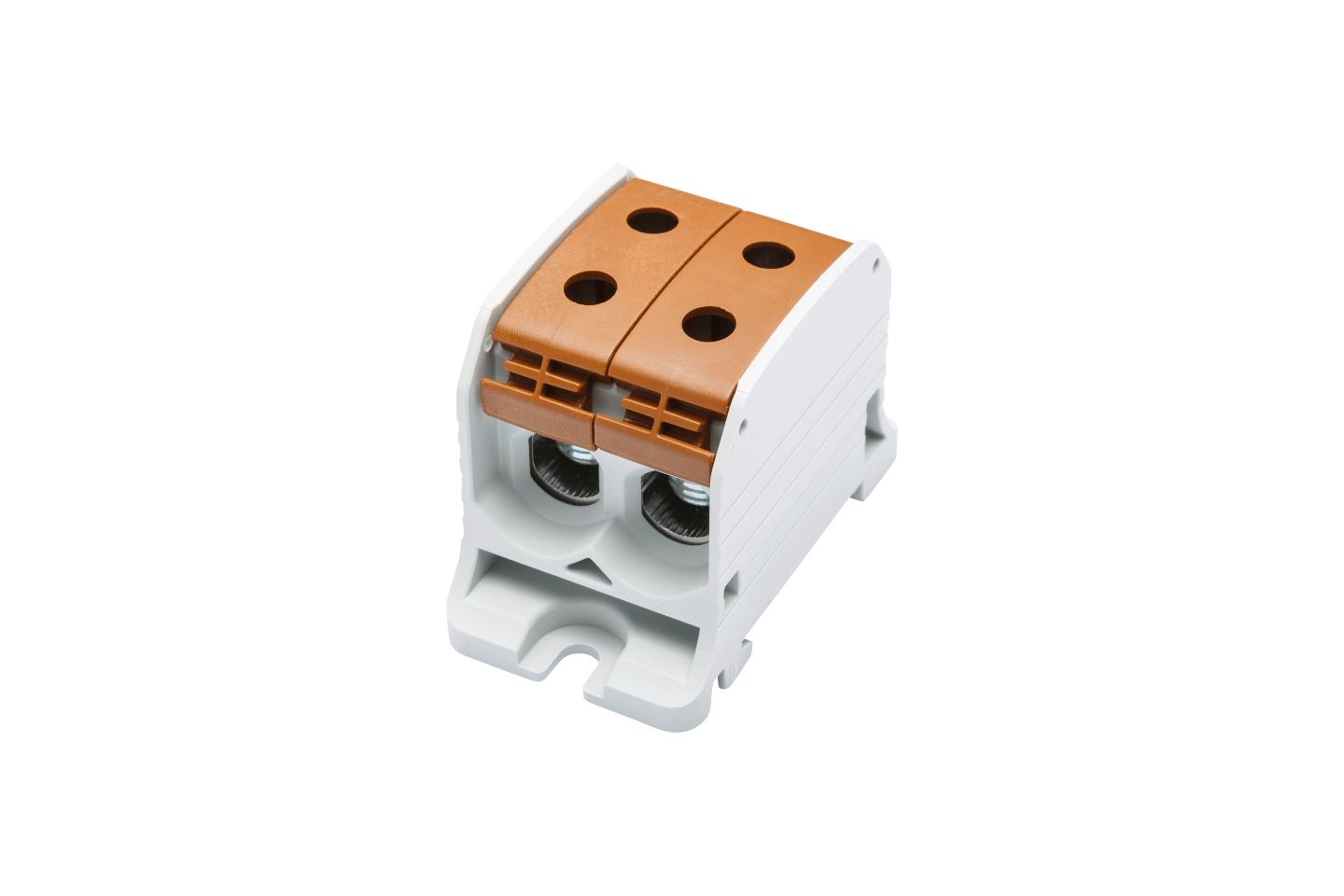

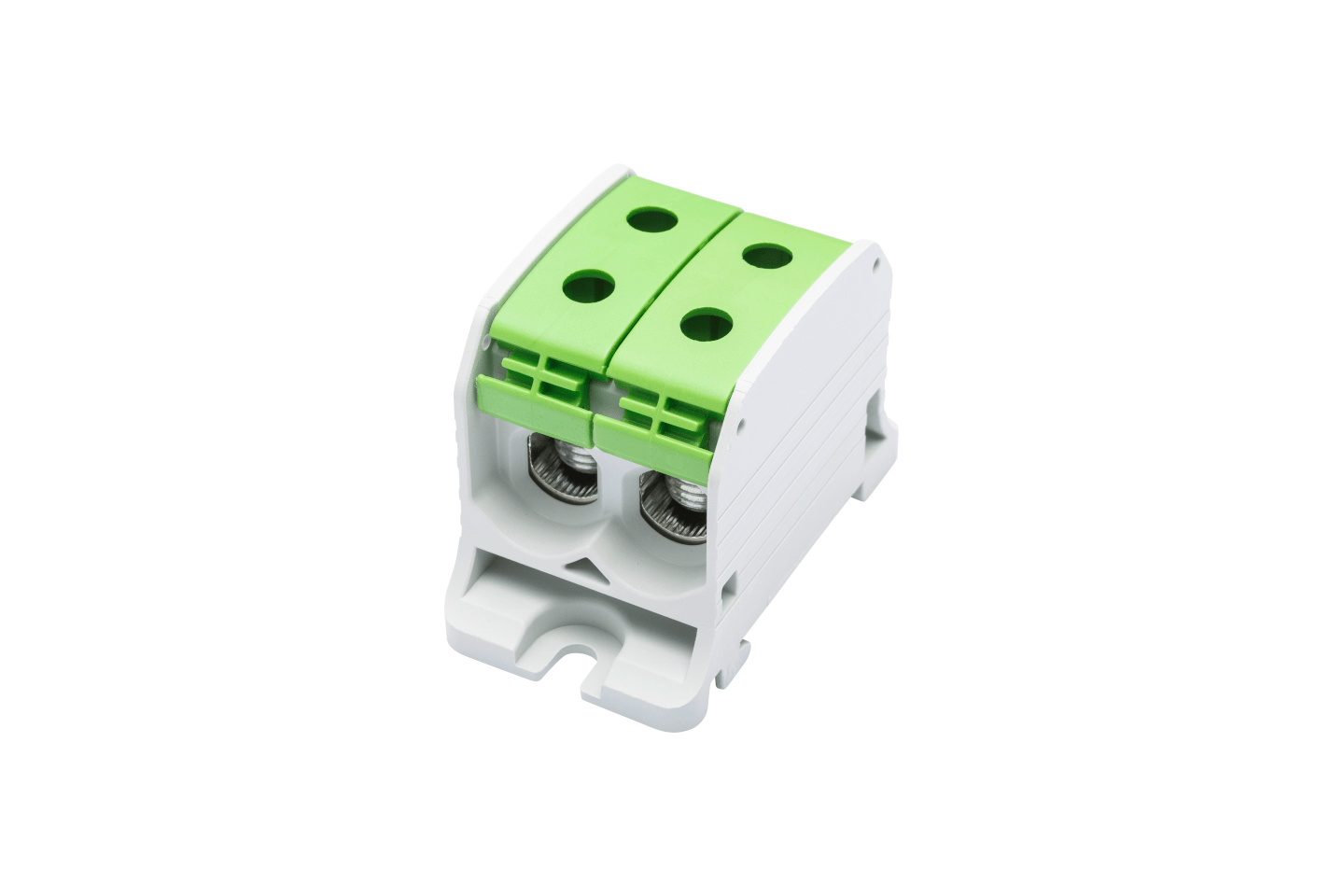

In addition to the single pole versions, the RKA 50 aluminium terminal block is also available in a 3 pole version in various colour combinations. The RKA 50 has the mandatory push-through protection and is finger-safe on all sides. From RKA 50, the aluminium terminal blocks can also be mounted on mounting plates.

#087310

Product details

max. 1000 V AC/DC

max. 150 A Cu

max. 150 A Al

IEC 60947-7-1 Icon VDE  Icon FI

IEC 61238-1 (Class A) Icon FI

UL-1059 / CS C22.2 No.158-10 Icon UL

2x 50 – 6 mm² (1/0 – 10 AWG) Icon Solid conductor  Icon Stranded conductor

2x 35 – 4 mm² (2 – 12 AWG) Icon Wire end ferrule

Accessories

Dust cover #087300-0-0

Dust cover for aluminium terminal block 50 mm²
