PDB 490
- Distribution block
- Cross-section range from 70 mm² to 185 mm²
- connection of 1 x 185 mm², 2 x 35 mm², 3 x 25 mm² and 4 x 16 mm² or flat conductor 24 x 10 mm
- For copper and aluminium conductors
- Also UL approved
With a cross-section of 10 to 95 mm², the PDB 490 is currently the largest distribution block in the PDB series. It is suitable for connecting round and sector conductors made of copper and aluminium, as well as flat conductors. There is a wide range of cross-sections available for the outgoing connections.
#082090
Product details
max. 1000 V AC / 1500 V DC
490 A Cu (Flexi Bar incoming 24 x 10 mm)
353 A Cu (incoming 1x 185 mm²)
310 A Cu / 250 A Al (incoming 1x 350 kcmil)
IEC 60947-7-1
IEC 60947-7-1
UL-1059
1x 185 – 95 mm² (350 – 3/0 AWG)
1x 150 – 70 mm² (300 – 2/0 AWG)
1x Flat conductor 24 x 10 mm
2x 35 – 4 mm² (2 – 12 AWG)
2x 25 – 2,5 mm² (4 – 14 AWG)
3x 25 – 2,5 mm² (4 – 14 AWG)
3x 16 – 1,5 mm² (6 – 16 AWG)
4x 16 – 1,5 mm² (6 – 16 AWG)
4x 10 – 1,5 mm² (8 – 16 AWG)
transparent
transparent- blue
transparent-black
transparent-red
Other colours available on request
Accessories

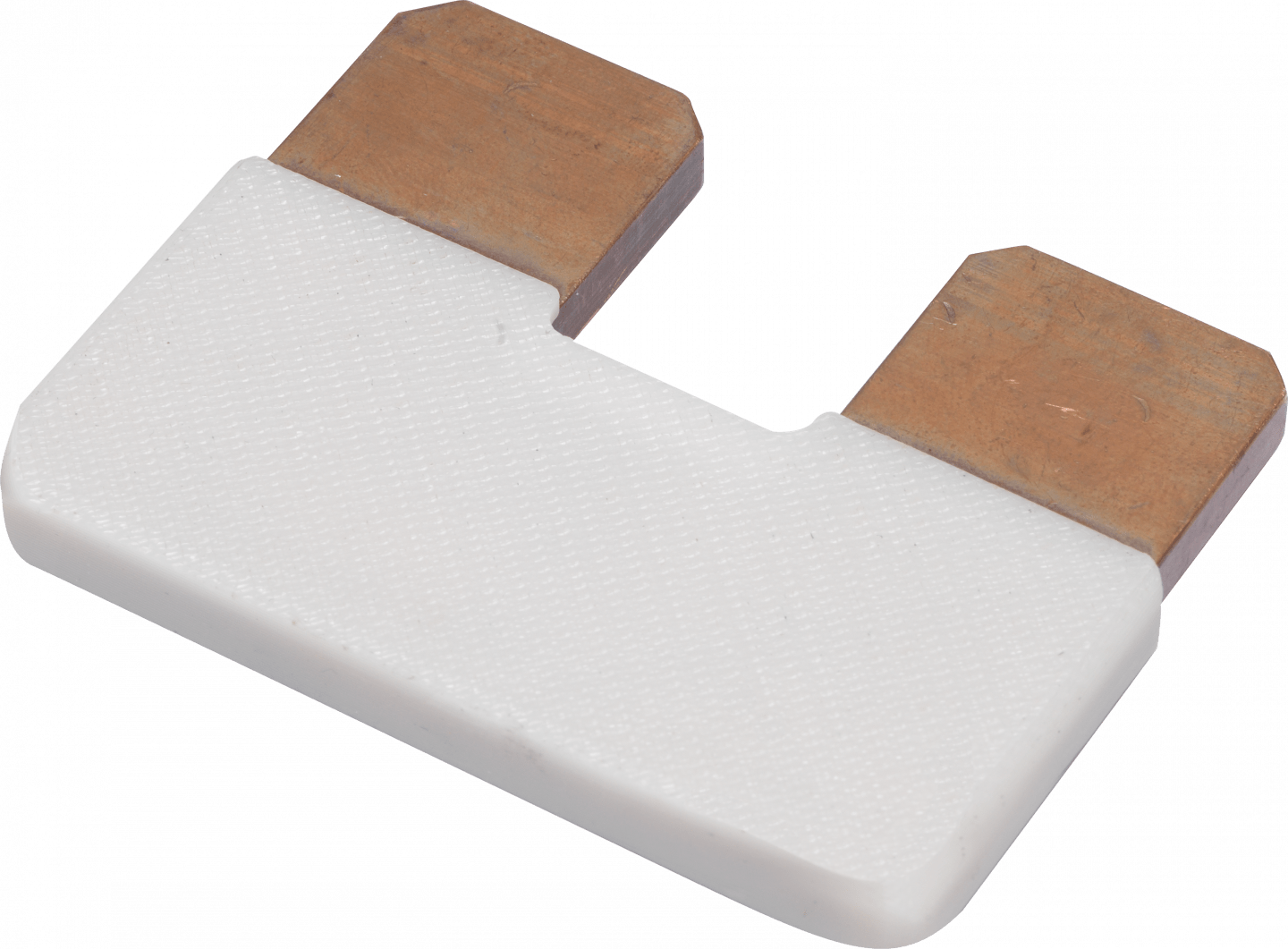

Flat conductor bridge for connecting 2 modules #082004-2-4
