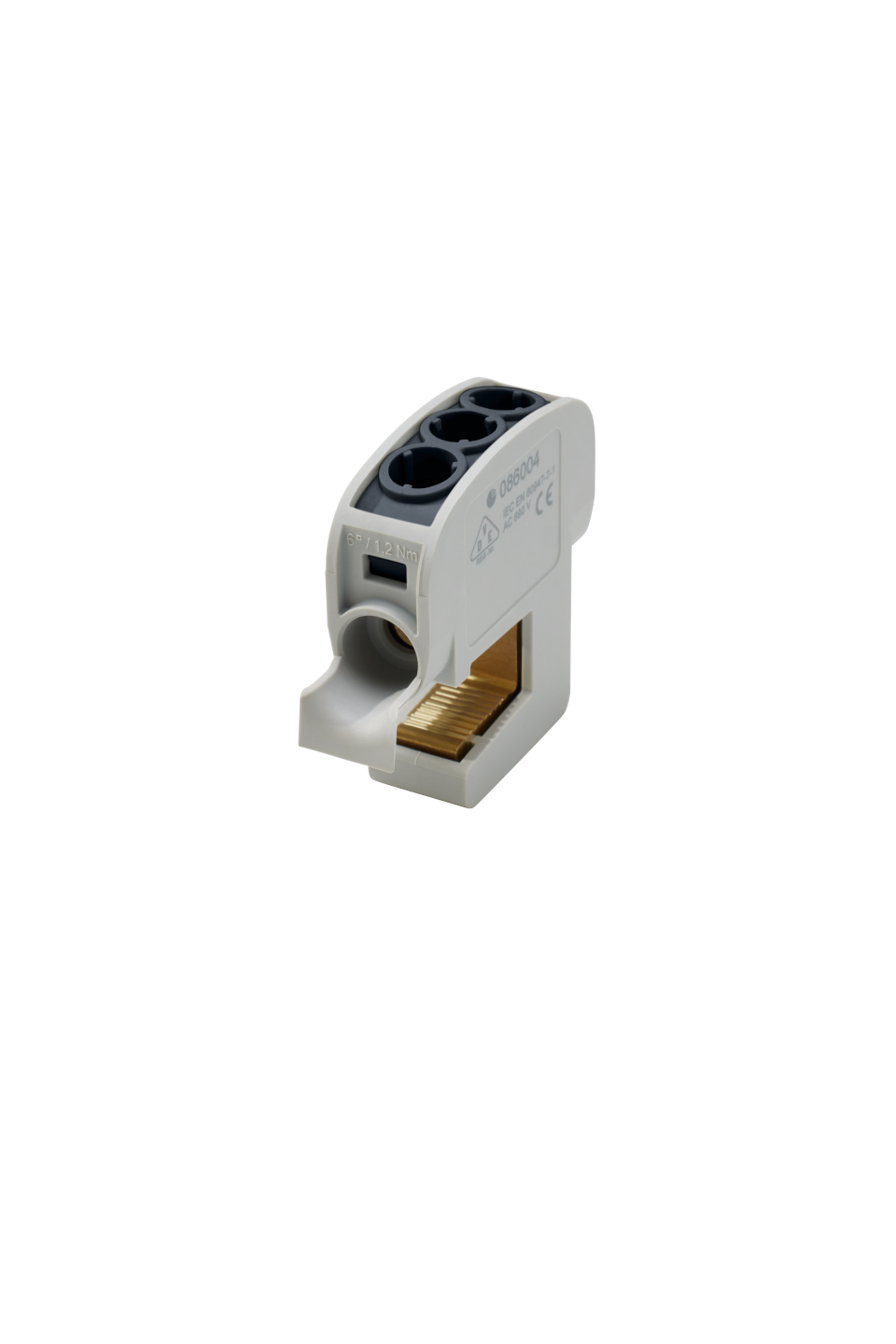

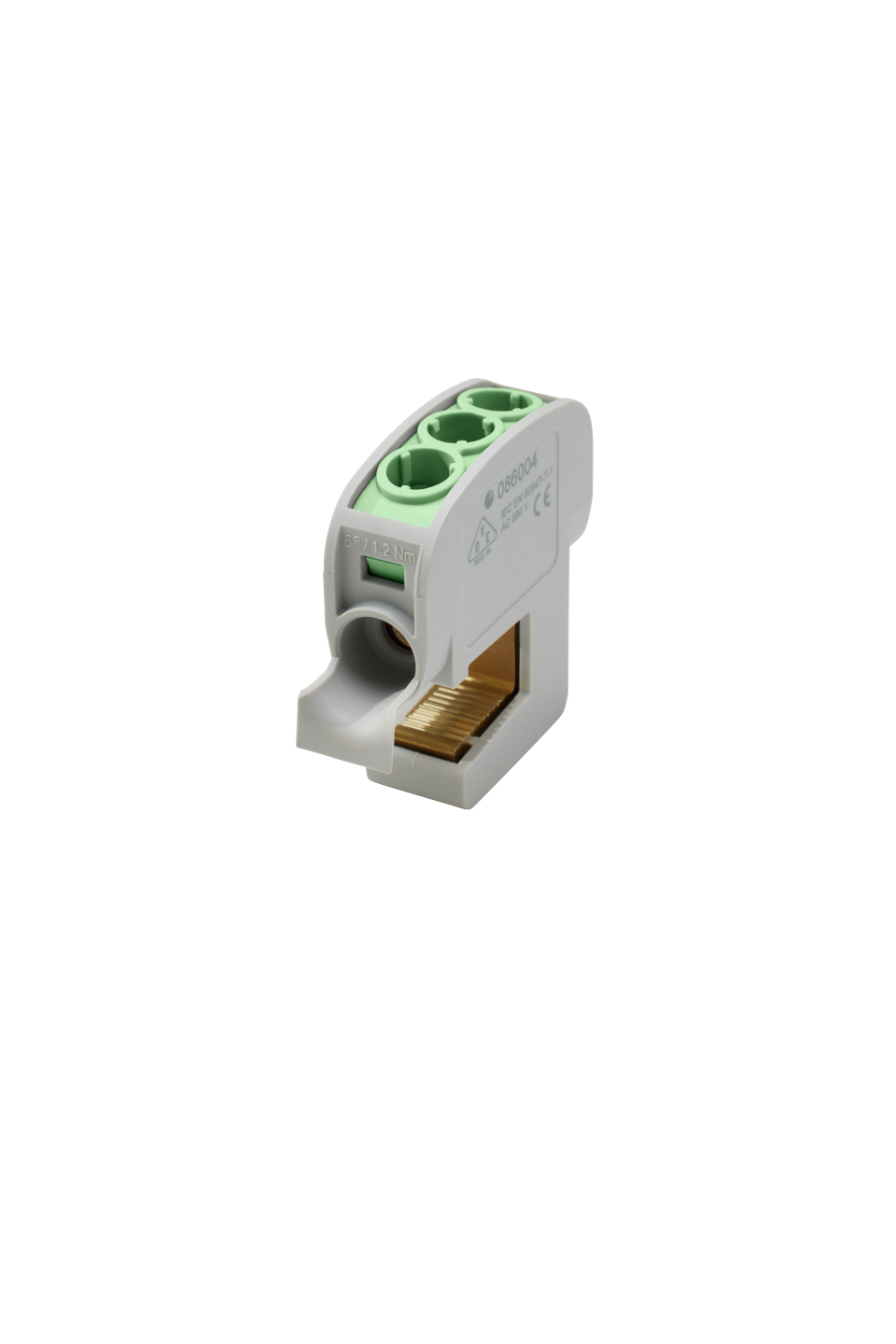

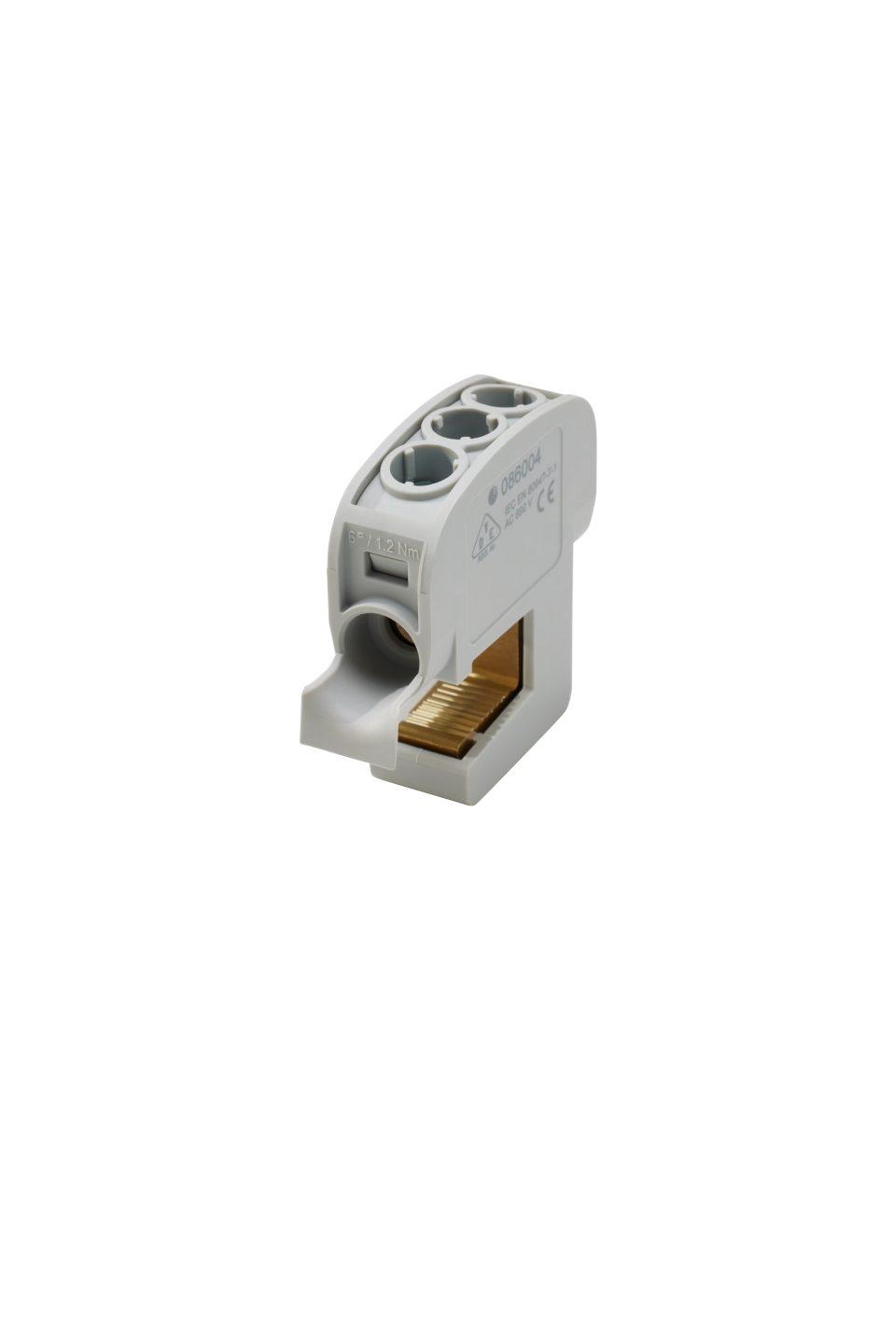

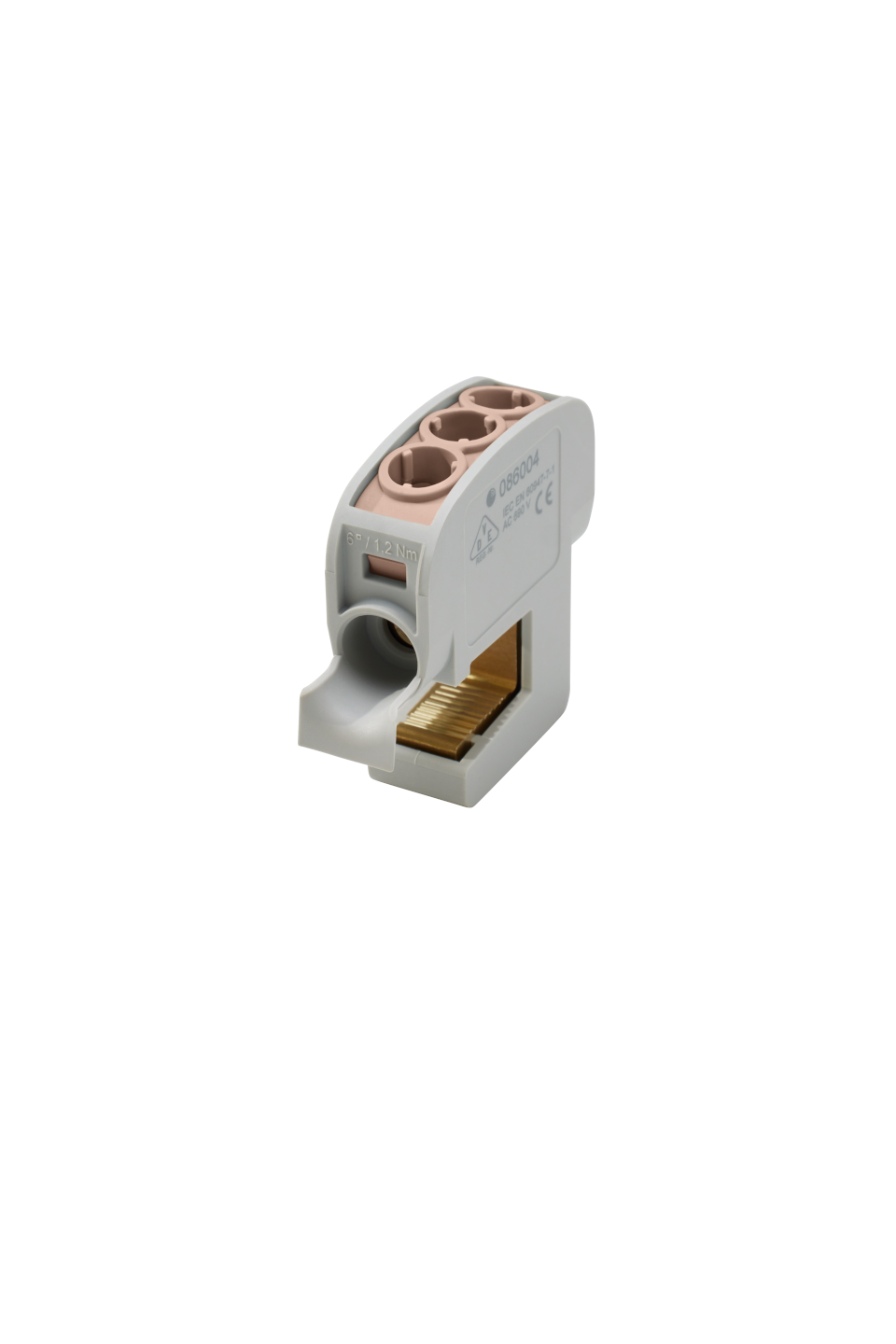

Busbar Connection Terminal SSAK 6
- Finger-safe busbar connection terminal 6 mm²
- two integrated conductor outlets at 1.5 mm² to 6 mm²
- for copper conductors
The SSAK 6 busbar connection terminals are suitable for copper busbar assemblies with a thickness of 3 mm, 5 mm or 10 mm. It connects copper conductors with a cross-sections of 1.5 up to 6 sqmm with a maximum current capacity of 82 A and 690 V. Cable entry is possible from the front and rear.
#086004
Product details
690 V
82 A
IEC 60947-7-1
1x Cu Busbar strength (height) 3 – 10 mm and depth (width) minimum 10 mm
2x 6 – 1.5 mm²
2x 4 – 1 mm²
light grey
blue
green
brown
black
